Description

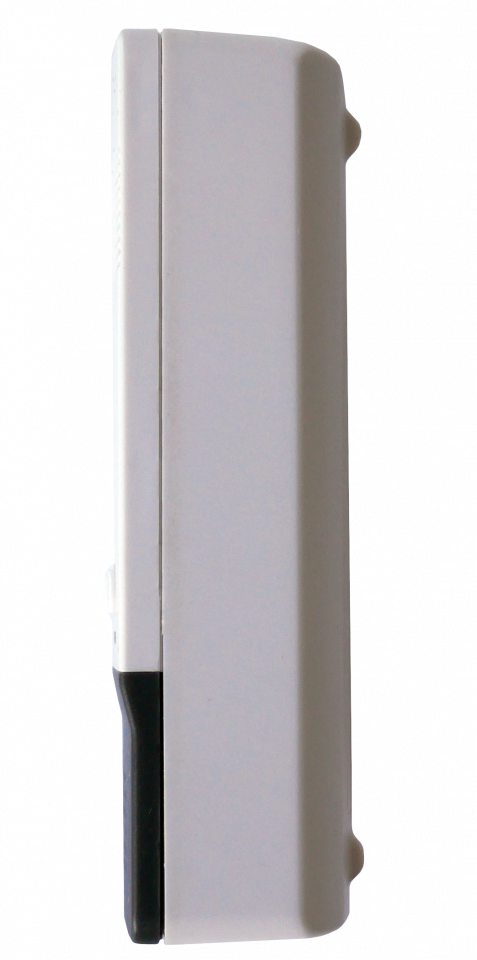

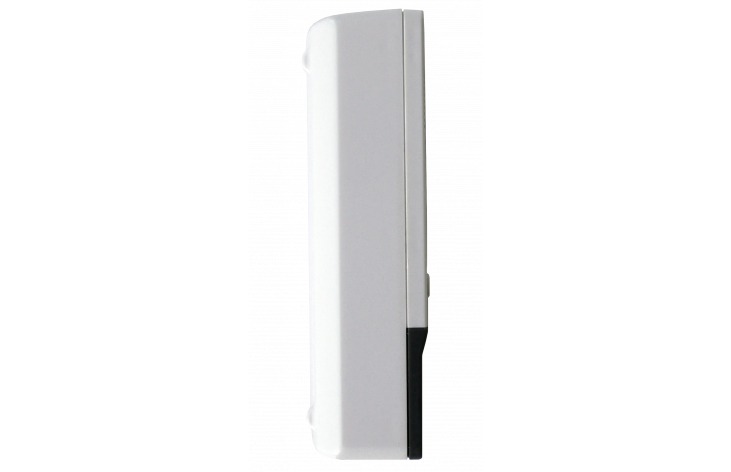

Wireless chime Slinex CH-01 is easy to install and has an excellent working range to outdoor panel ML-20IP.



Typical ranges are:

1. Open area – 100 m
2. Wood wall – 80 - 100 m
3. Concrete wall – 10 m - 60 m
4. Metallic wall – not recommended.



Setup

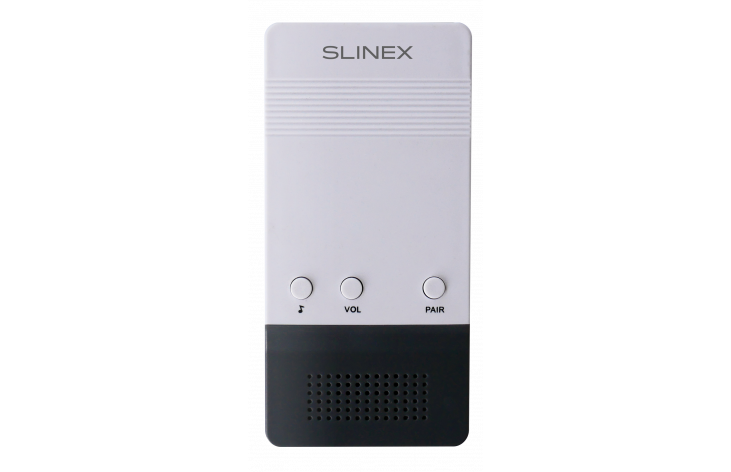

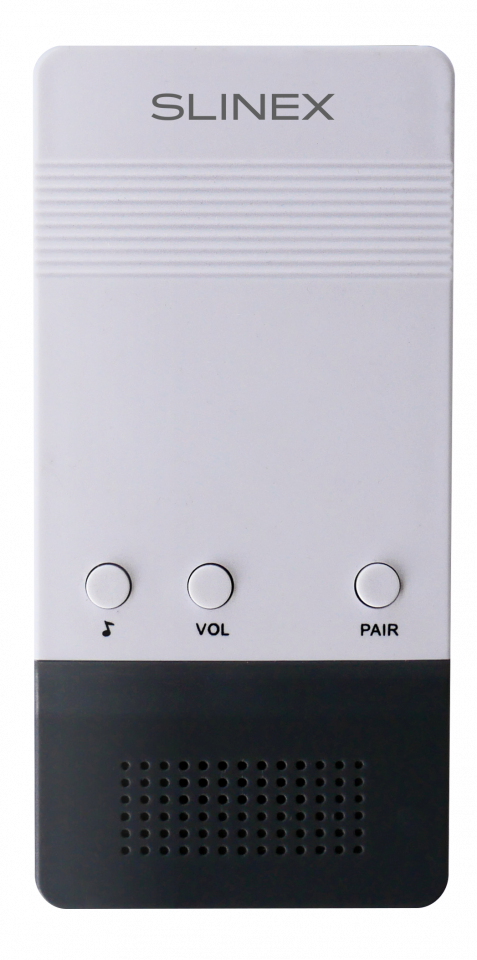

Press the call button on ML-20IP outdoor panel, then press «PAIR» button on the wireless chime to pair devices. You will hear a ringtone from wireless chime if pairing is successfull. After pairing you will hear chime sound every time visitor presses the call button on ML-20IP outdoor panel. Press «VOL» button to change volume between high, middle and low modes. Press «» button to change ringtone.



Characteristics

Melodies quantity
38 melodies
Working frequency
433 MHz
Volume
3 levels (high, middle and low)

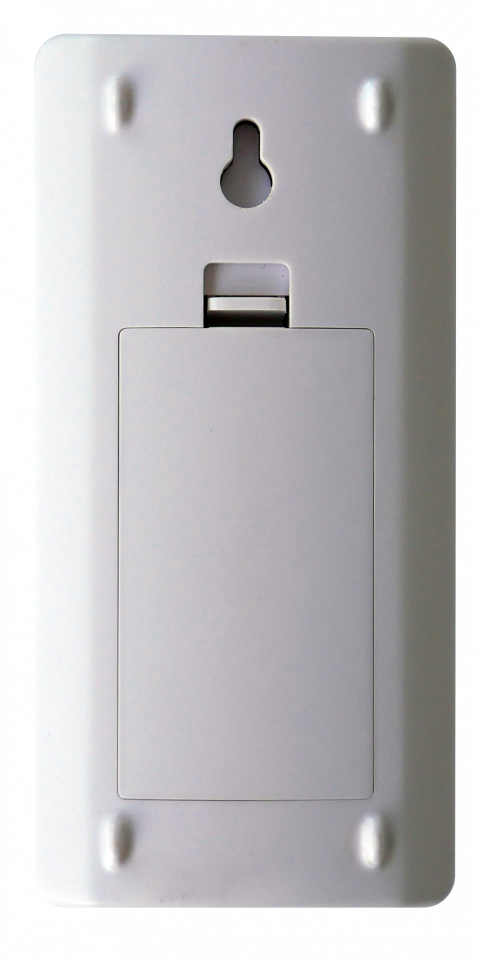

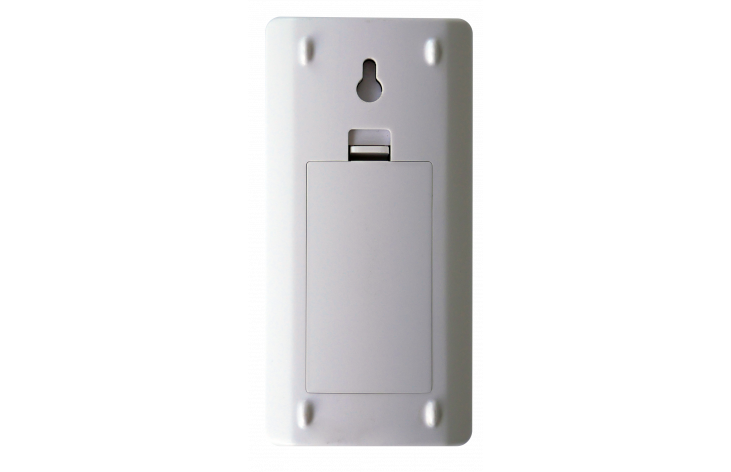

Installation type
Surface mount
Operating temperature
–10 ... +55 ˚C (+14...+131 ˚F)
