Shan (S)
Multi-apartment IP outdoor station
- Resolution 2Mp (1920×1080), 1/3” CMOS
- 150° wide viewing angle
- Built-in 4.3” color TFT touch screen (480×272)
- MIFARE IC card reader (2 wireless keys included)
- Lock relay 2A – NO/COM/NC support
- PoE or DC15V (2A) power supply
- Wiegand interface and exit button support
Colors
Shan (S)
Multi-apartment IP outdoor station
- Resolution 2Mp (1920×1080), 1/3” CMOS
- 150° wide viewing angle
- Built-in 4.3” color TFT touch screen (480×272)
- MIFARE IC card reader (2 wireless keys included)
- Lock relay 2A – NO/COM/NC support
- PoE or DC15V (2A) power supply
- Wiegand interface and exit button support
Colors
Description

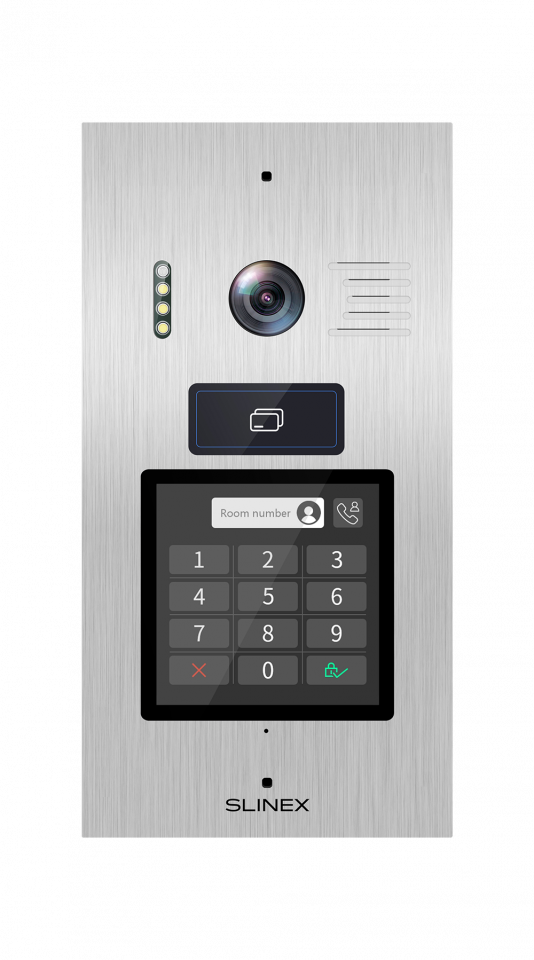

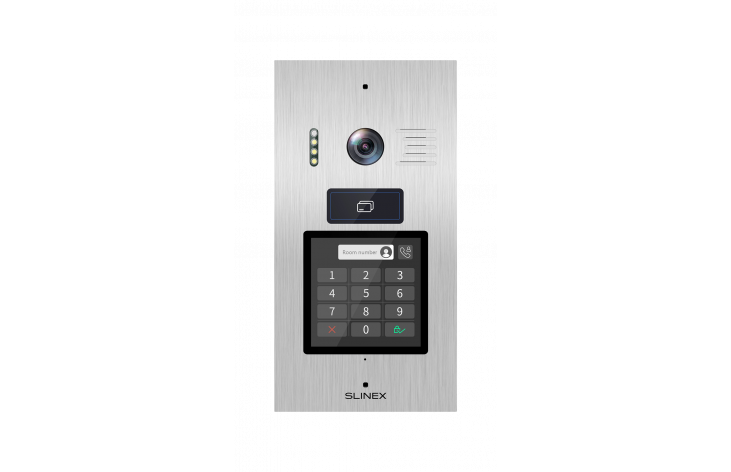

Introducing the Slinex Shan (S) IP Outdoor Panel
Slinex Shan (S) is a modern IP outdoor panel designed for multi-apartment buildings and residential complexes. Combining Full HD video, built-in access control, and PoE connectivity, it delivers a reliable and scalable solution for secure entrance management over a standard IP network.
Full HD 2MP Camera with Wide Viewing Angle
Equipped with a 1/3” CMOS sensor (1920×1080, Full HD) and a mechanical IR-cut filter, the Shan (S) ensures clear, detailed video in various lighting conditions. The 150° wide viewing angle provides excellent coverage of the entrance area.
Built-in 4.3” Display
The integrated 4.3” color TFT touch screen (480×272 px) enables convenient interaction and clear visual feedback directly on the panel.
Efficient Video Compression – H.264 High Profile
Support for H.264 high profile video output ensures optimized bandwidth usage while maintaining high image quality within IP systems.
Integrated Mifare Access Control
The panel features a built-in Mifare card reader and includes two wireless IC keys in the комплект. Flexible access control is supported via lock interface (NO/COM/NC), Wiegand interface, and exit button connector.
Reliable Lock Control
The lock relay supports continuous current up to 2A, providing stable operation with a wide range of electric locks.
PoE or 15V DC Power Supply
Slinex Shan (S) can be powered via PoE for simplified installation or by a +15V, 2A power adapter, offering flexibility depending on project requirements.
Durable for Harsh Conditions
Designed for outdoor use, the panel operates reliably within a temperature range of –40 to +50 °C, making it suitable for demanding climates.

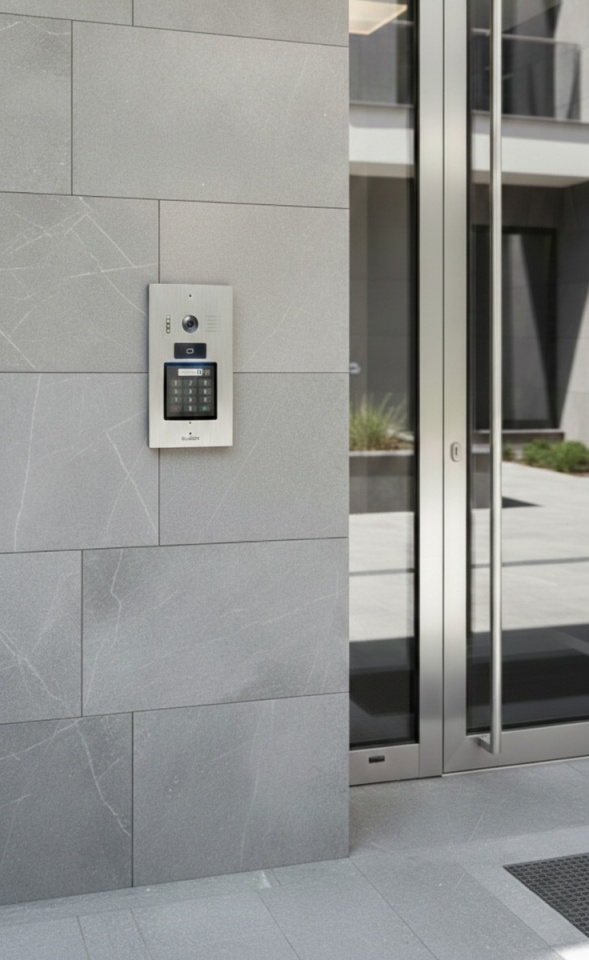

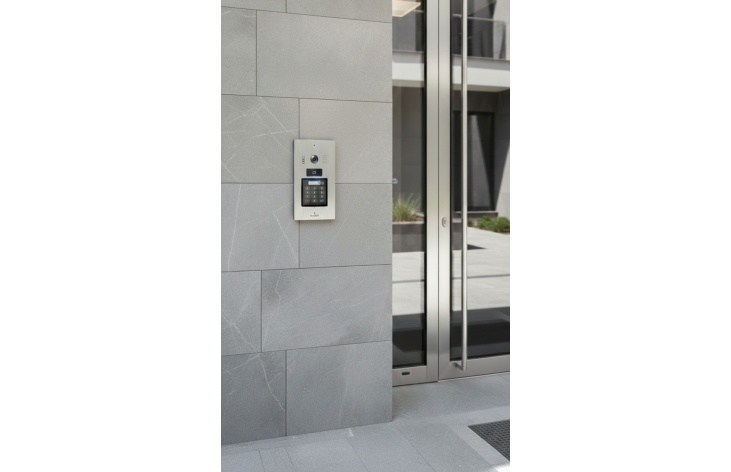

Surface-Mount Installation
The unit is designed for surface mounting and comes complete with an installation box, mounting screws, anchors, and connection wires. Dimensions: 210×116×35 mm (panel) / 211×119×51 mm (installation box).
Complete Package
• Shan (S) IP outdoor panel – 1 pc.
• Surface mount installation box – 1 pc.
• Wireless IC keys – 2 pcs.
• Connection wires kit – 1 pkg.
• Mounting screws and anchors – 1 pkg.
• User manual – 1 pc.
Slinex Shan (S) is a practical and professional IP solution for modern residential buildings – combining high-quality video, integrated access control, and straightforward network-based installation.
Horizontal viewing angle
150º
Camera resolution
1920×1080 (Full HD)
Display
4.3” color TFT touch screen
Dimensions
116×210×35 mm
Operating temperature
-40 – +50°С
ADDITIONALLY
INTERFACES
• RJ-45
• Wiegand interface
• Mifare card reader
• Exit button interface
• Lock interface (NO/COM/NC)
Characteristics
- Device type
- Multi-apartment IP outdoor station
- Camera resolution
- 1920×1080 (Full HD)
- Type of sensor
- 1/3" CMOS
- Cards type
- • MIFARE IC
• EM-Marine - Horizontal viewing angle
- 150º
