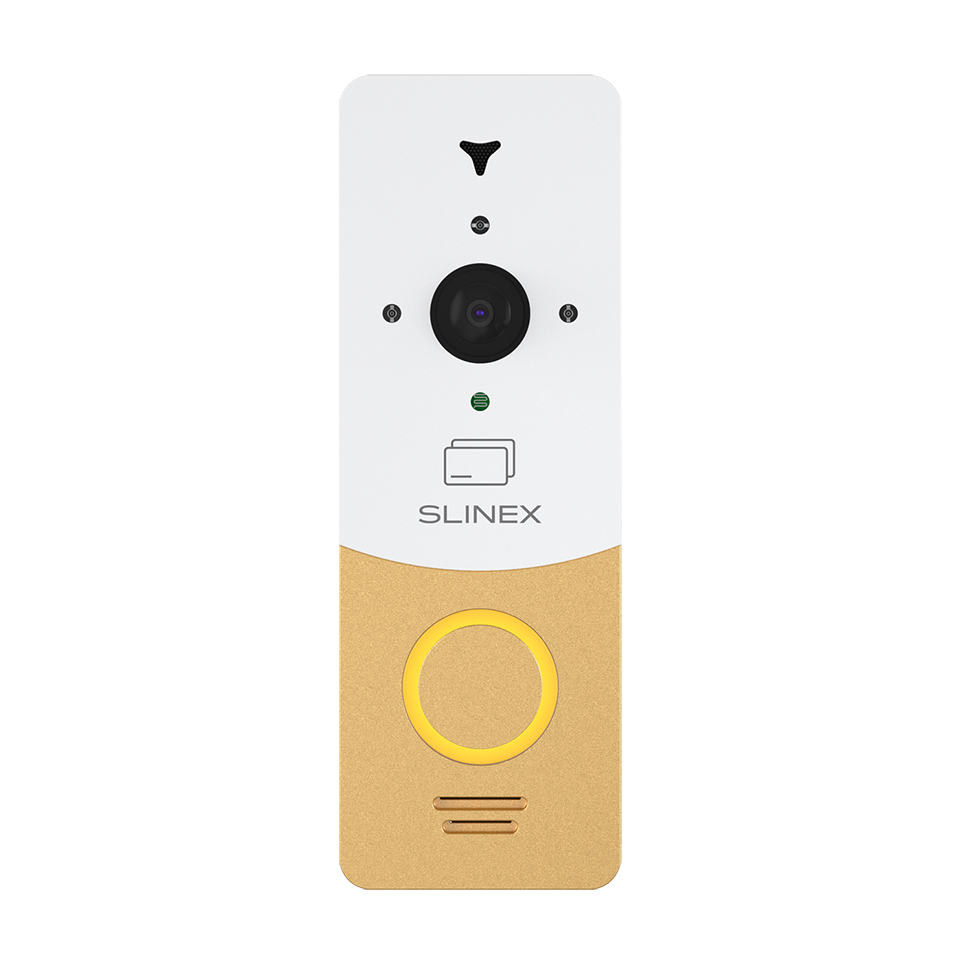

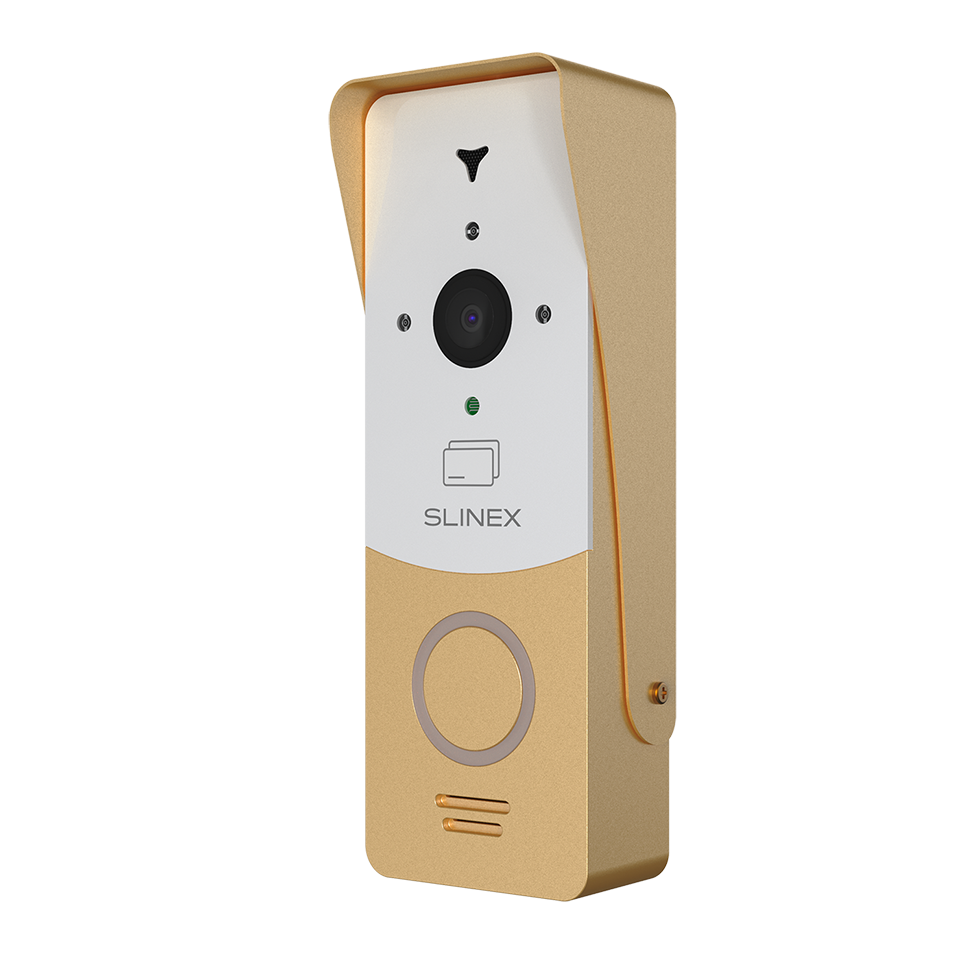

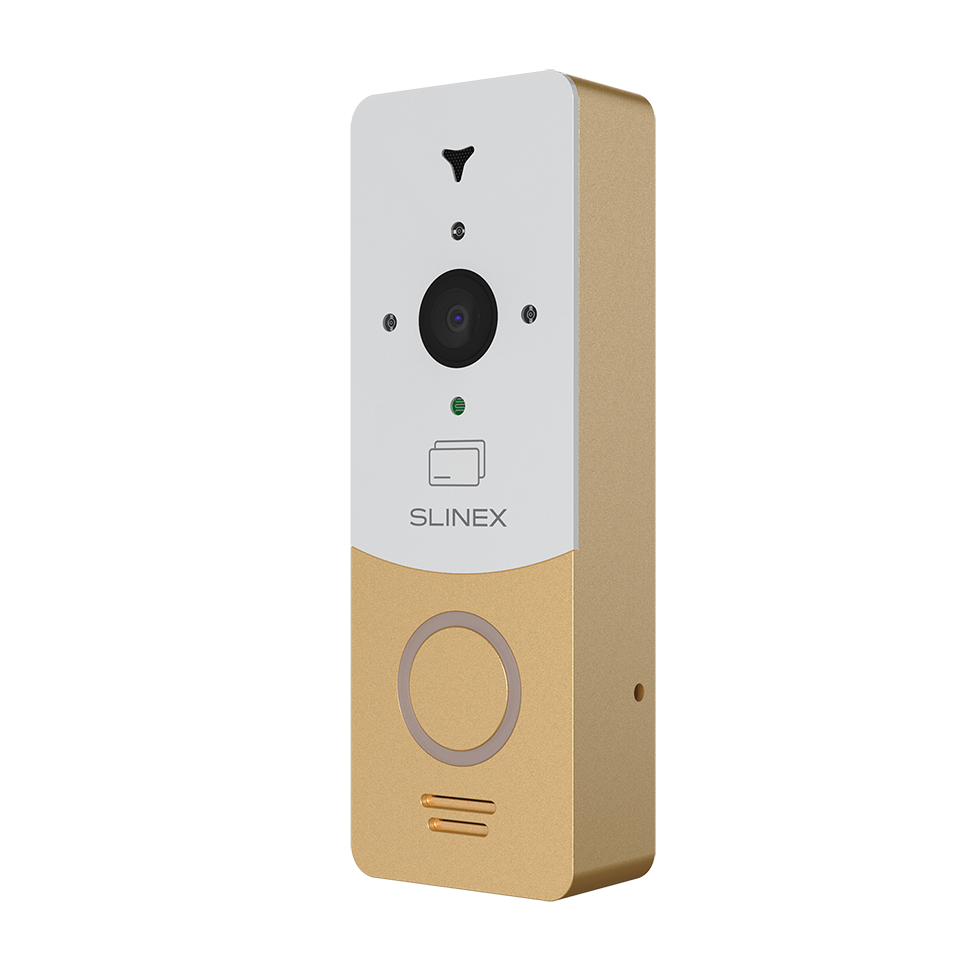

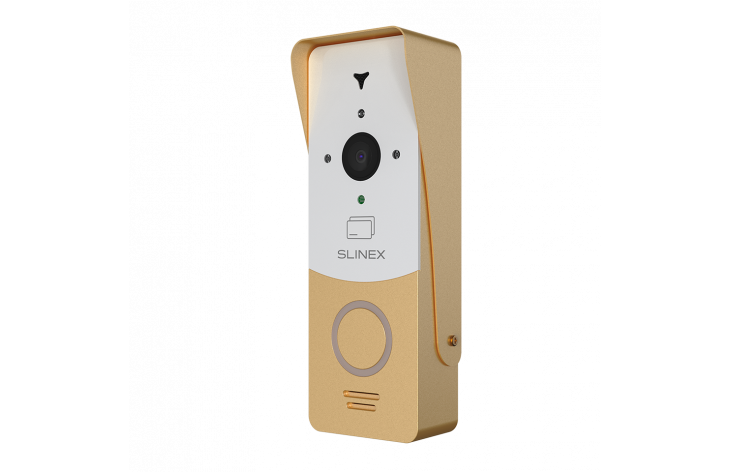

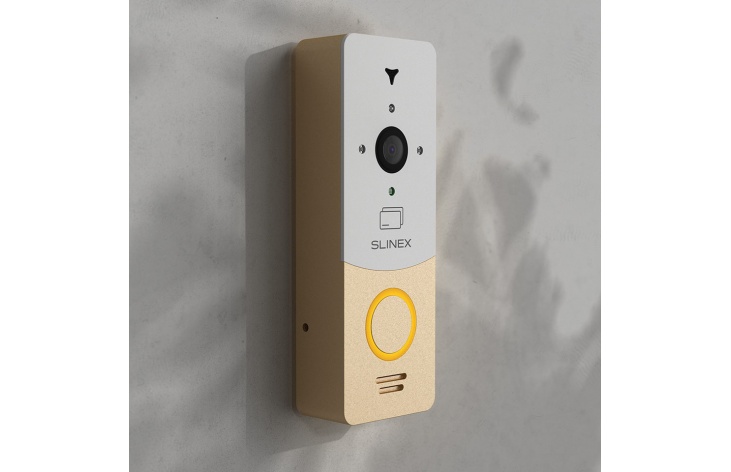

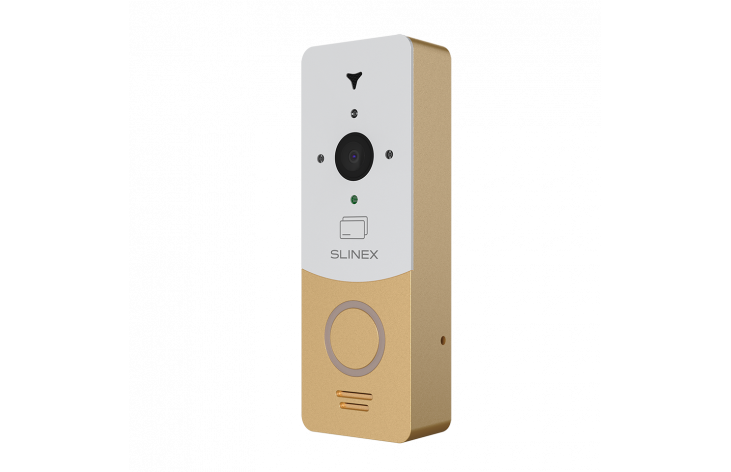

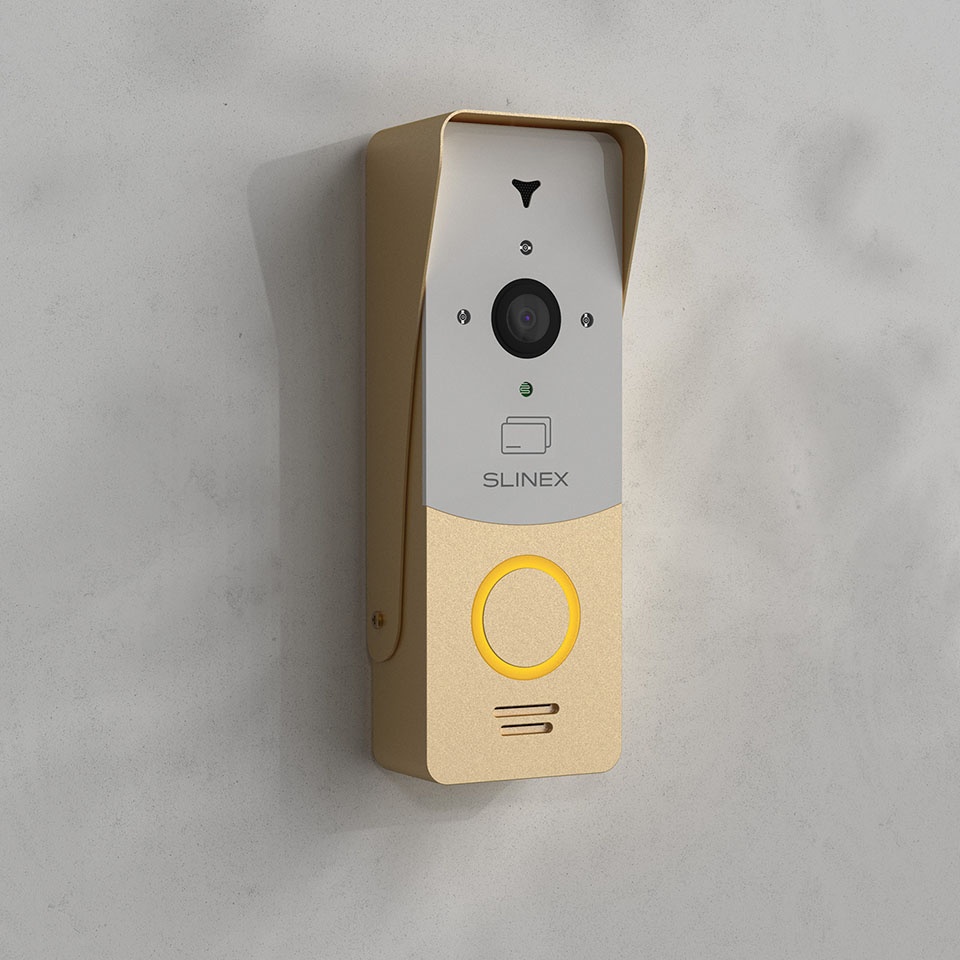

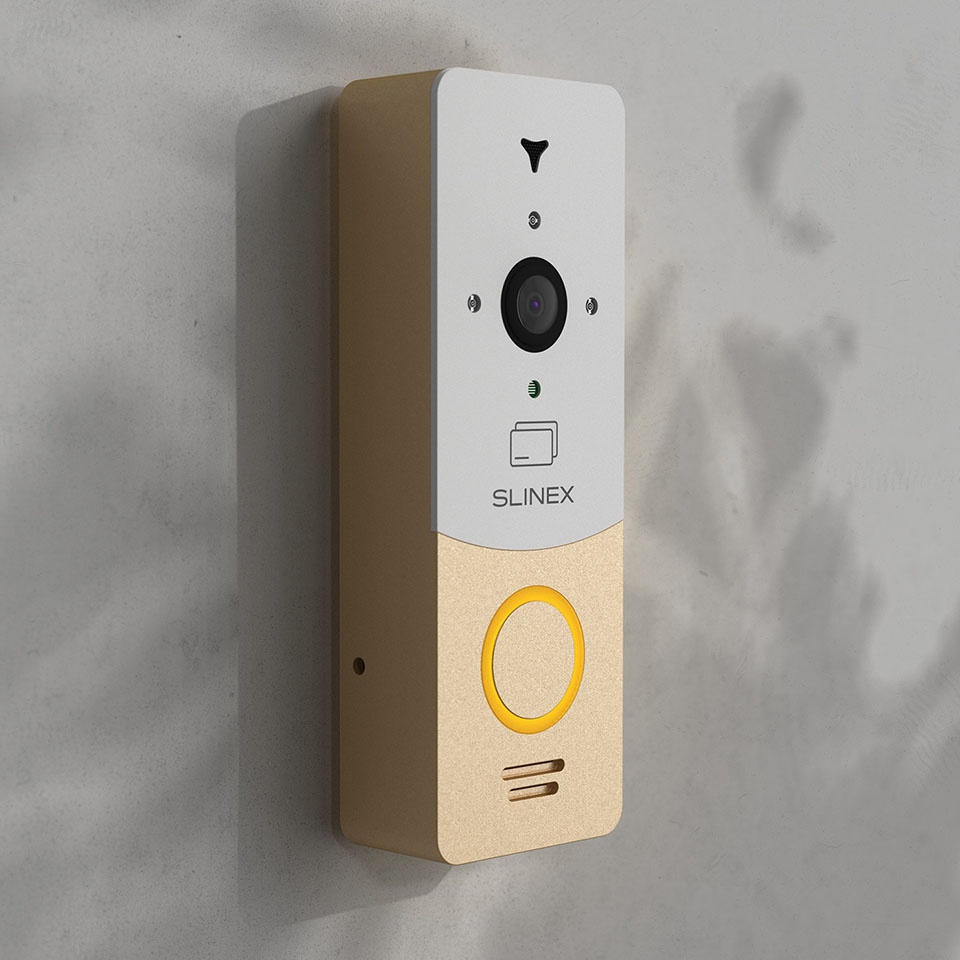

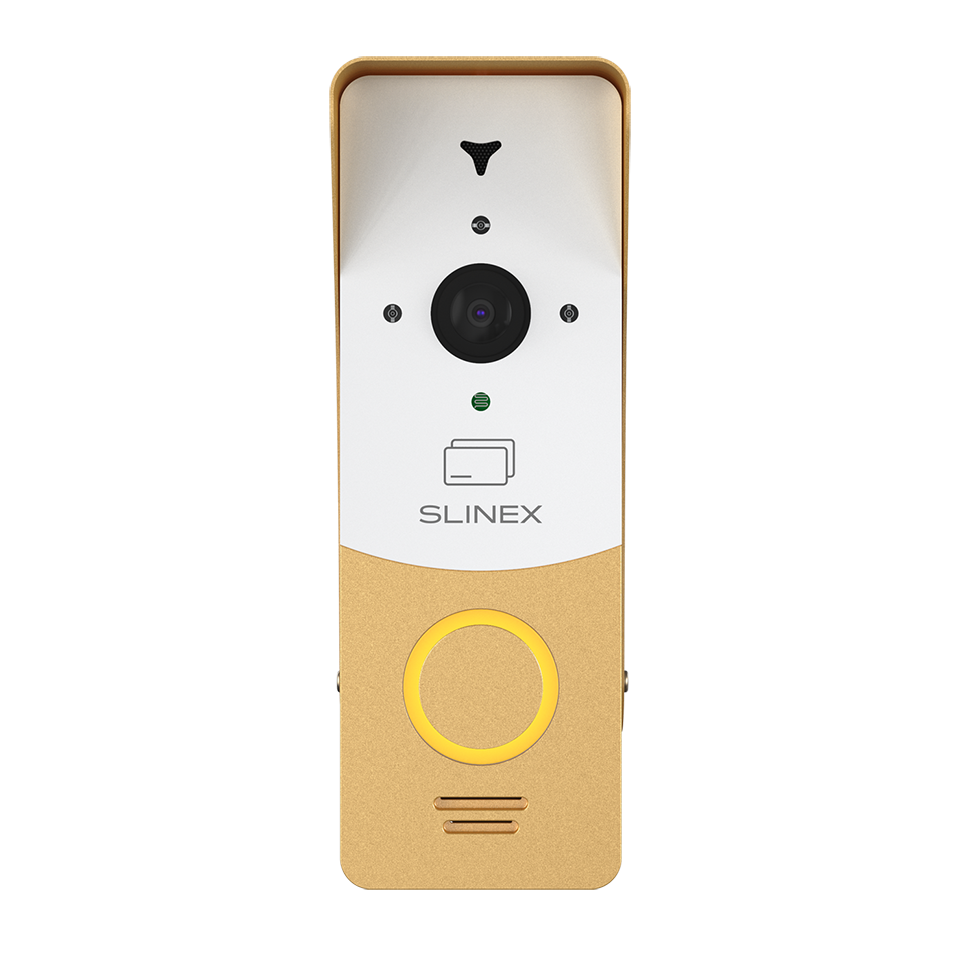

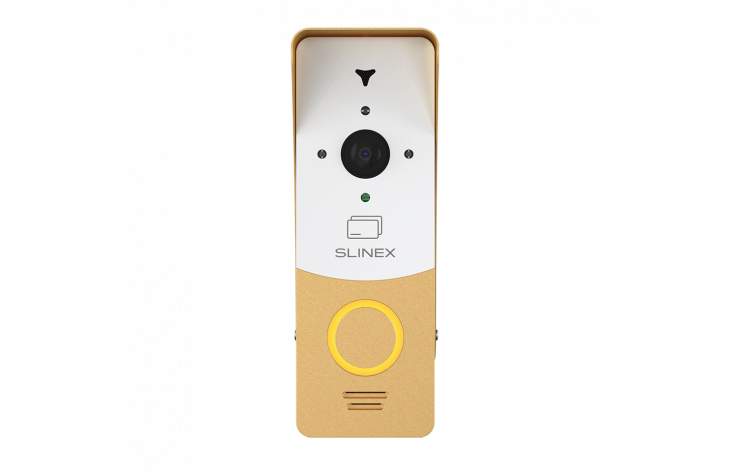

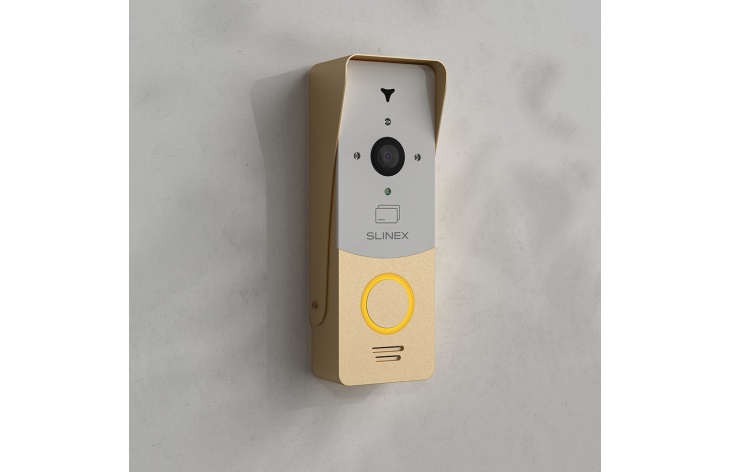

Give everyone access to the room and enjoy the benefits of the ML-20 range of outdoor panels. Refined style, a 2 megapixel camera, an EM-Marin card reader and support for any analog monitors are characteristics that make the ML-20CRHD a unique device.



Proximity card reader

The ML-20CRHD is equipped with an EM-Marin proximity card reader. The panel can store up to 248 unique identifiers inside its secure memory, which allows you to provide access to the premises to everyone you consider necessary. In addition, the ML-20CRHD has a Wiegand-26 output, thanks to which the panel can be connected to a third-party ACS system.



Camera

A 2-megapixel AHD camera with a viewing angle of 150 ° will allow you to take Full HD pictures and videos, where you can see the smallest details. IR illumination with a mechanical filter will allow you to see a person ringing at the door even at night.



Features

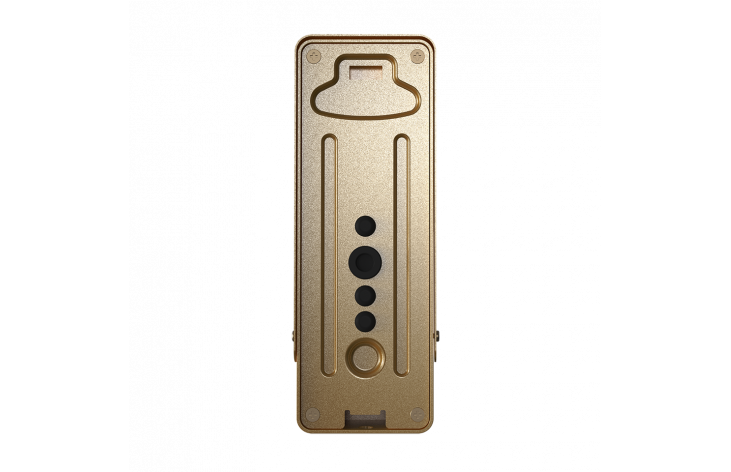

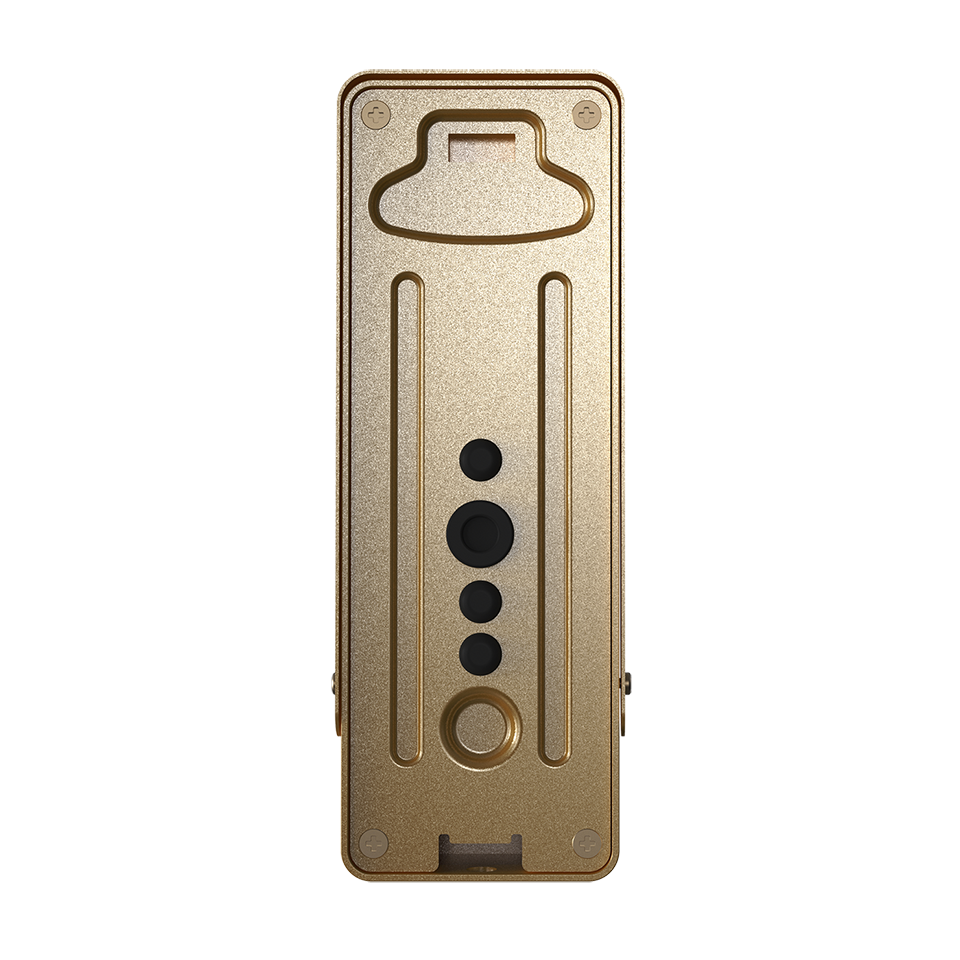

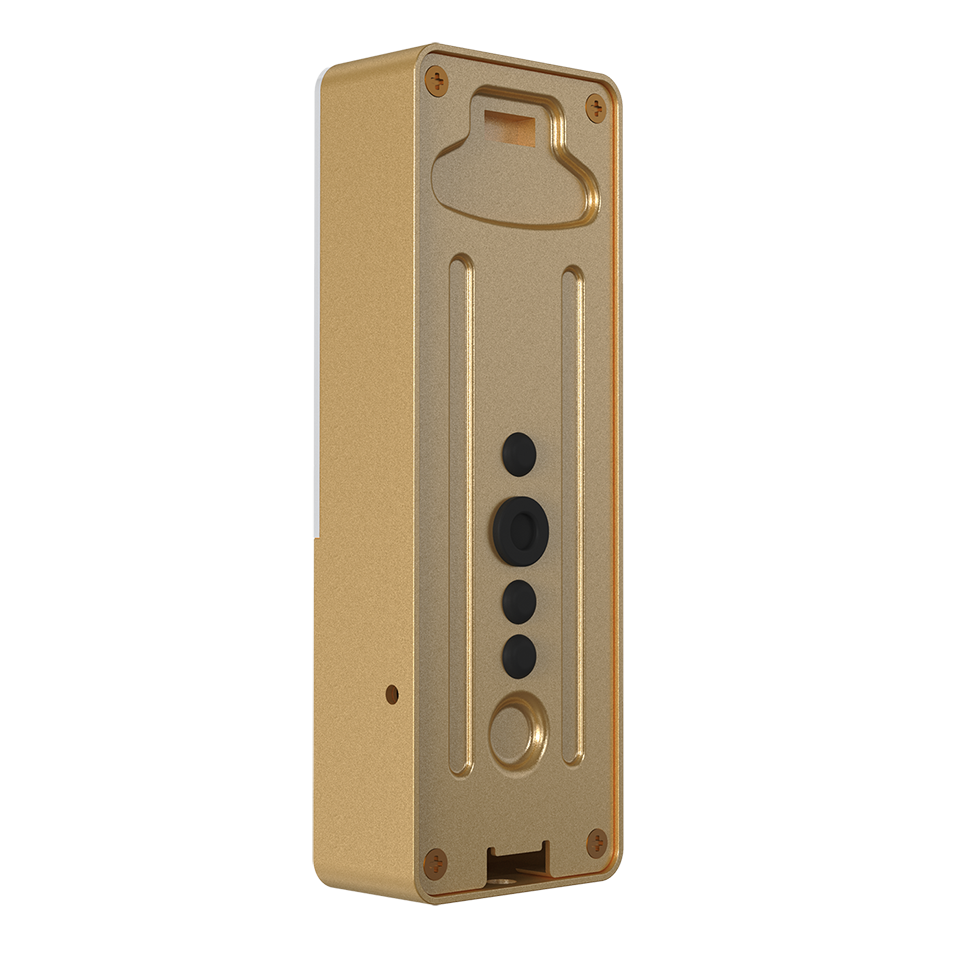

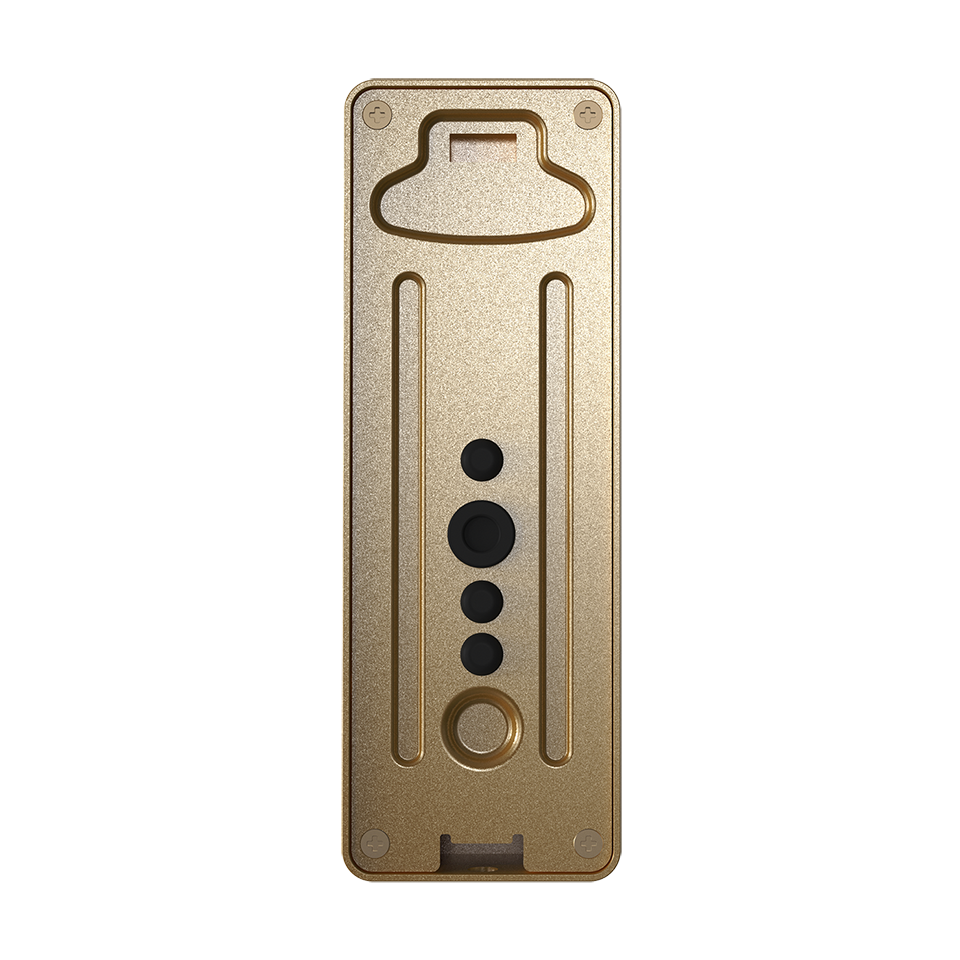

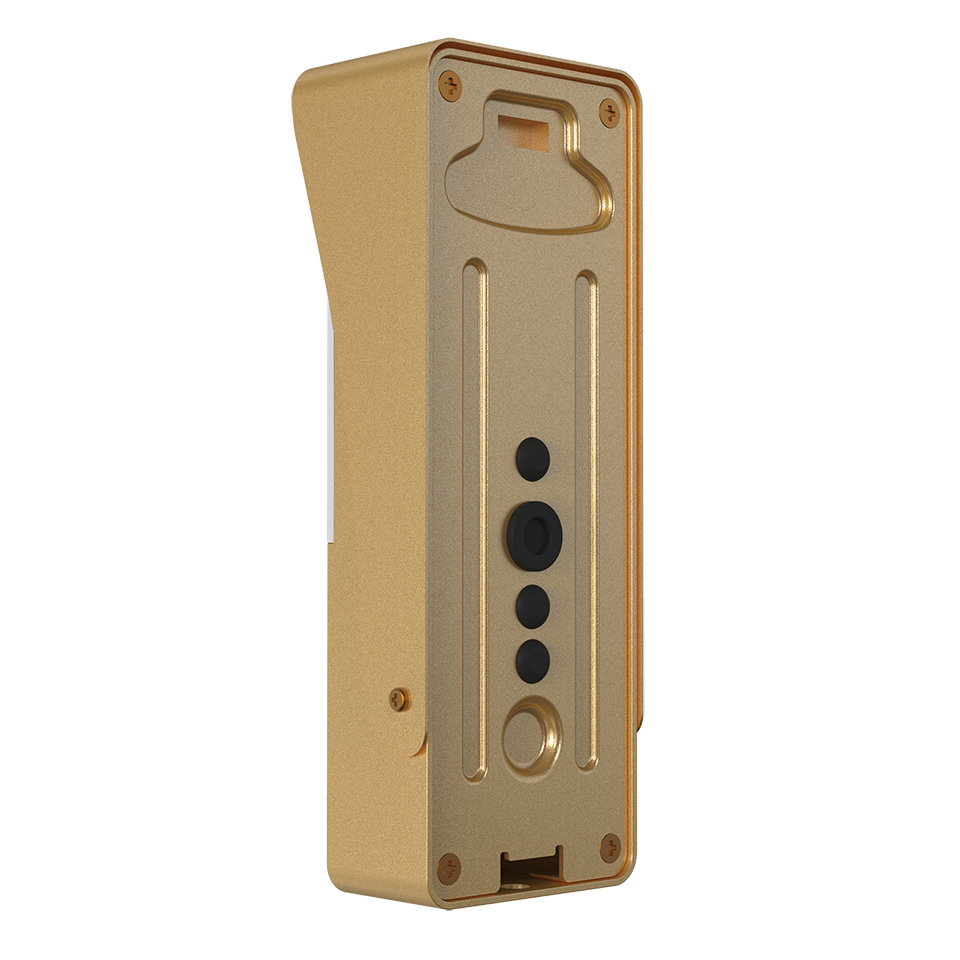

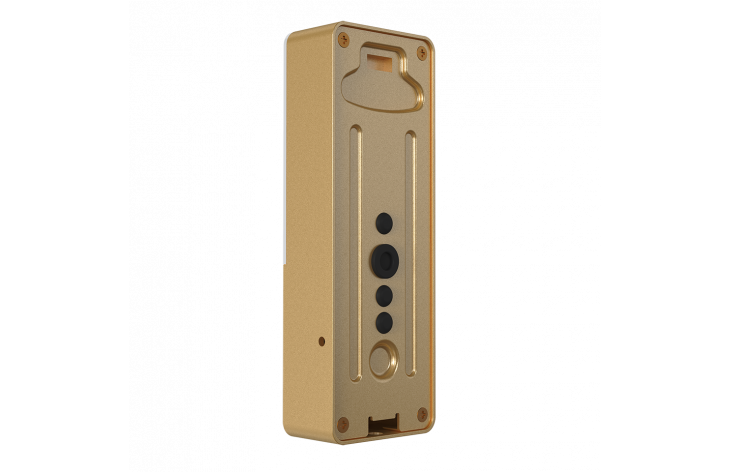

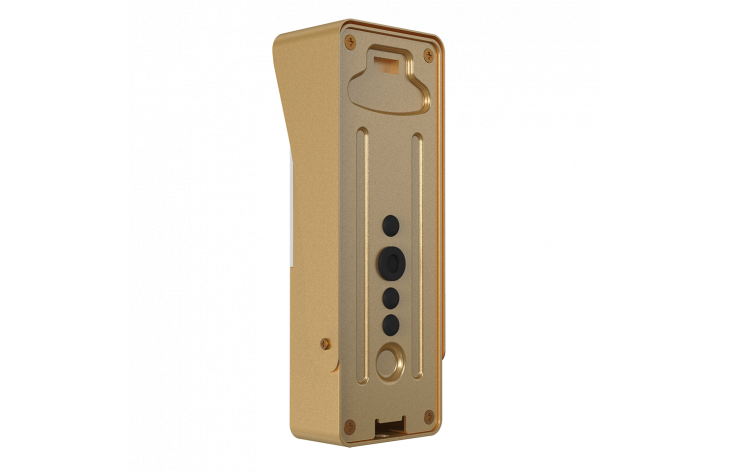

If your video door phone does not support the AHD standard for video recording, switch the video mode from AHD to CVBS using the button on the back of the device. The panel will operate in CVBS mode with a maximum video resolution of 960 TVL. ML-20CRHD is compatible with almost any analog video intercom.

Full description Hide
Horizontal viewing angle

115°

Camera resolution

• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)

Dimensions

45×130×24 mm

Operating temperature

-40 – +50 °С

Characteristics

Unique features
• Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR-cut filter
• Sensor type call button
• Video format switch button
• Access control – card reader EM-Marin
Type of sensor
1/4" CMOS
Night backlight
IR LED, up to 1.5 m
Minimal illumination
0,01 Lux
Body structure
Metal alloy
