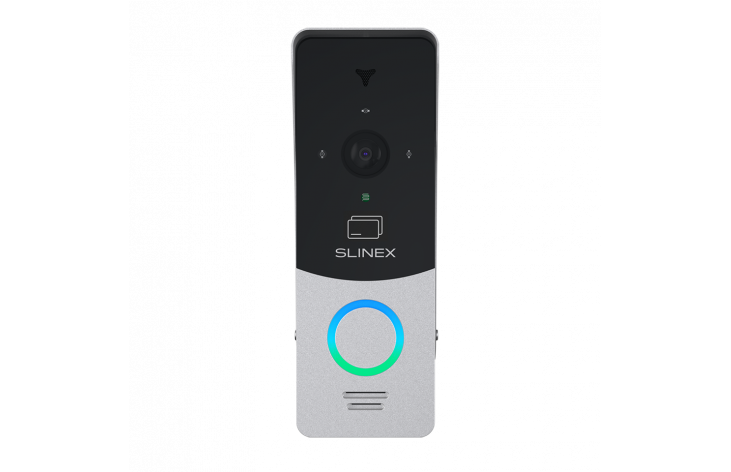

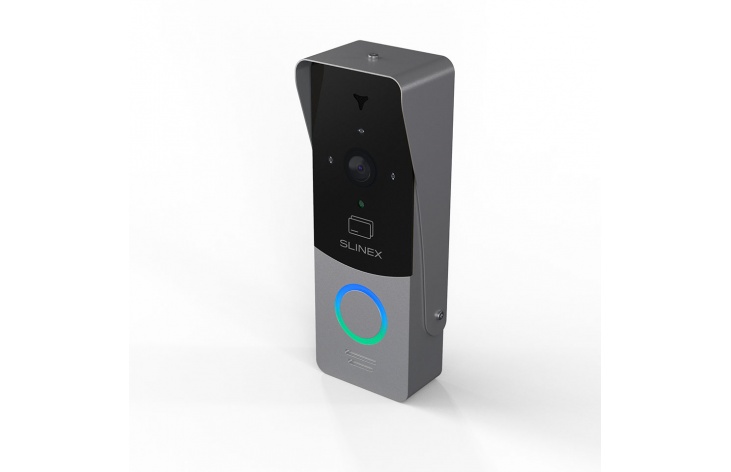

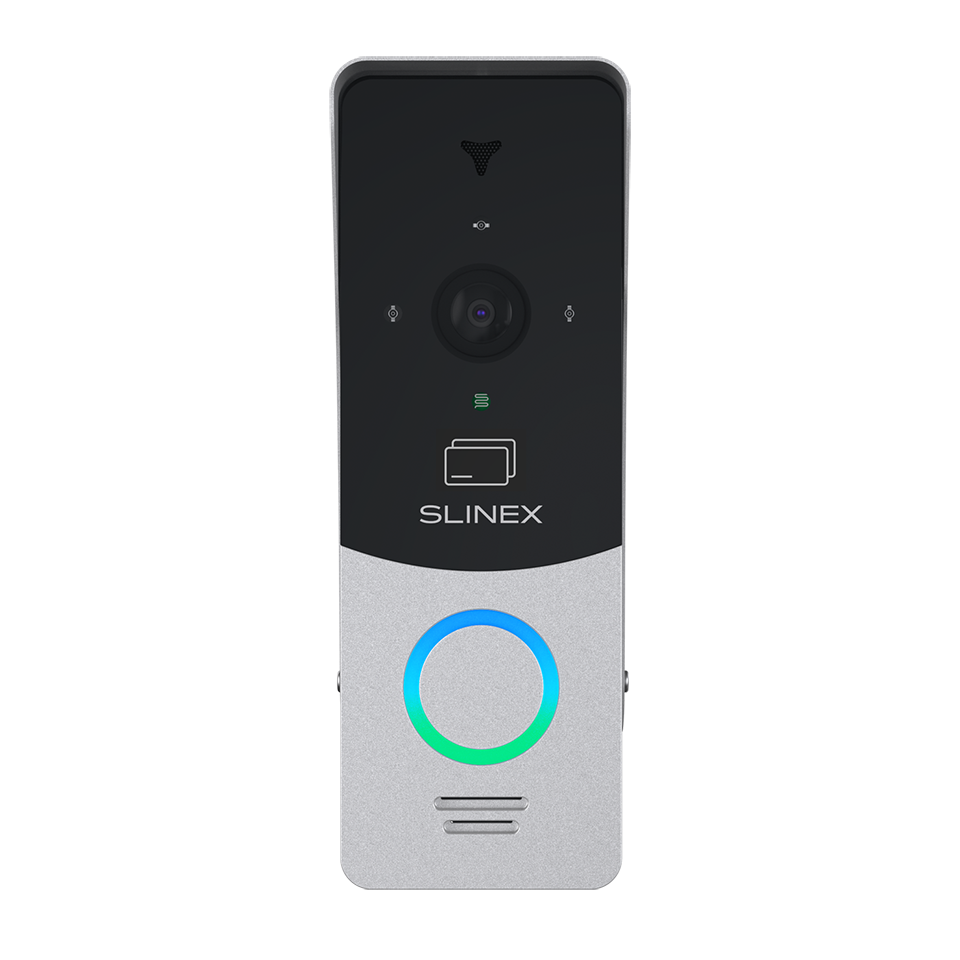

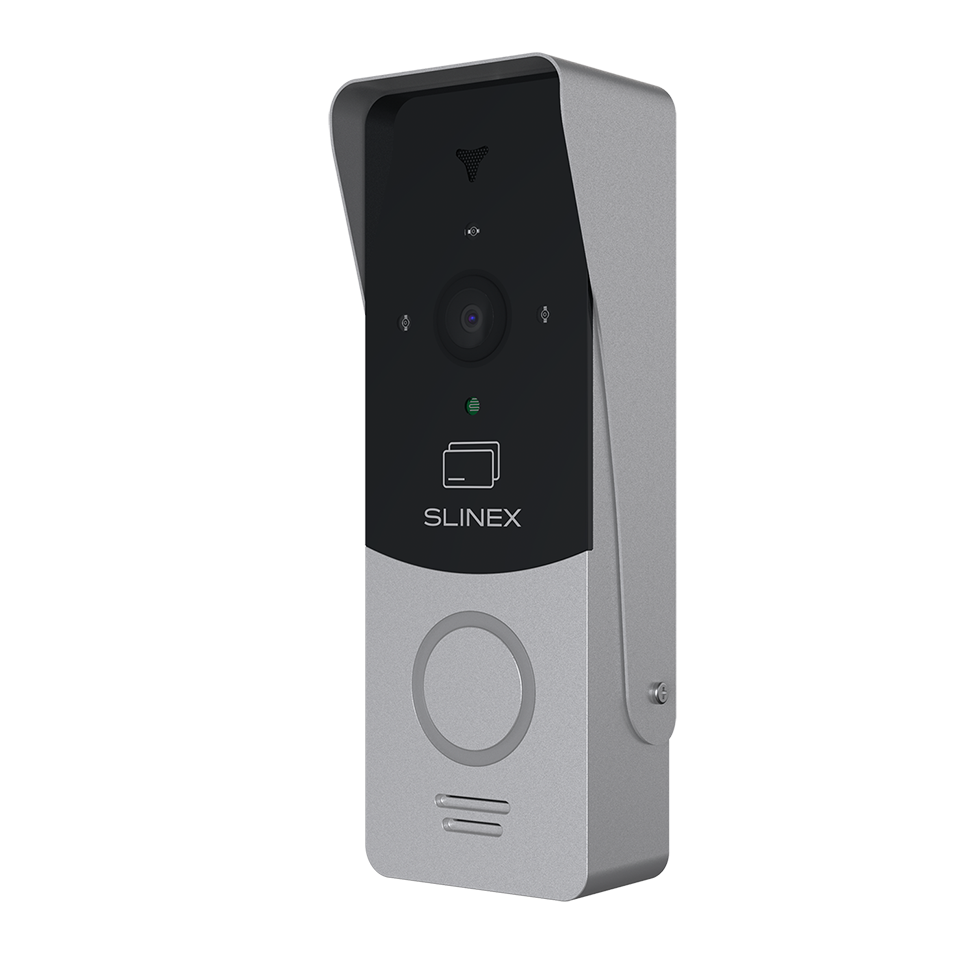

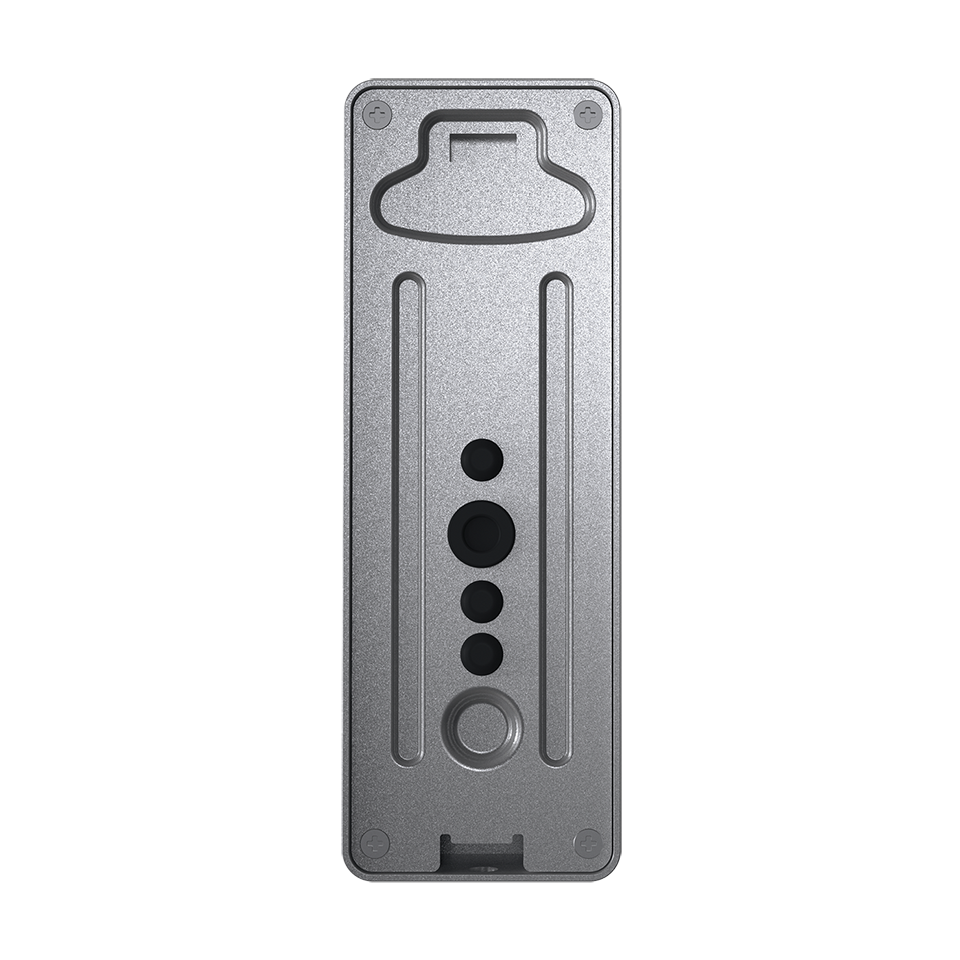

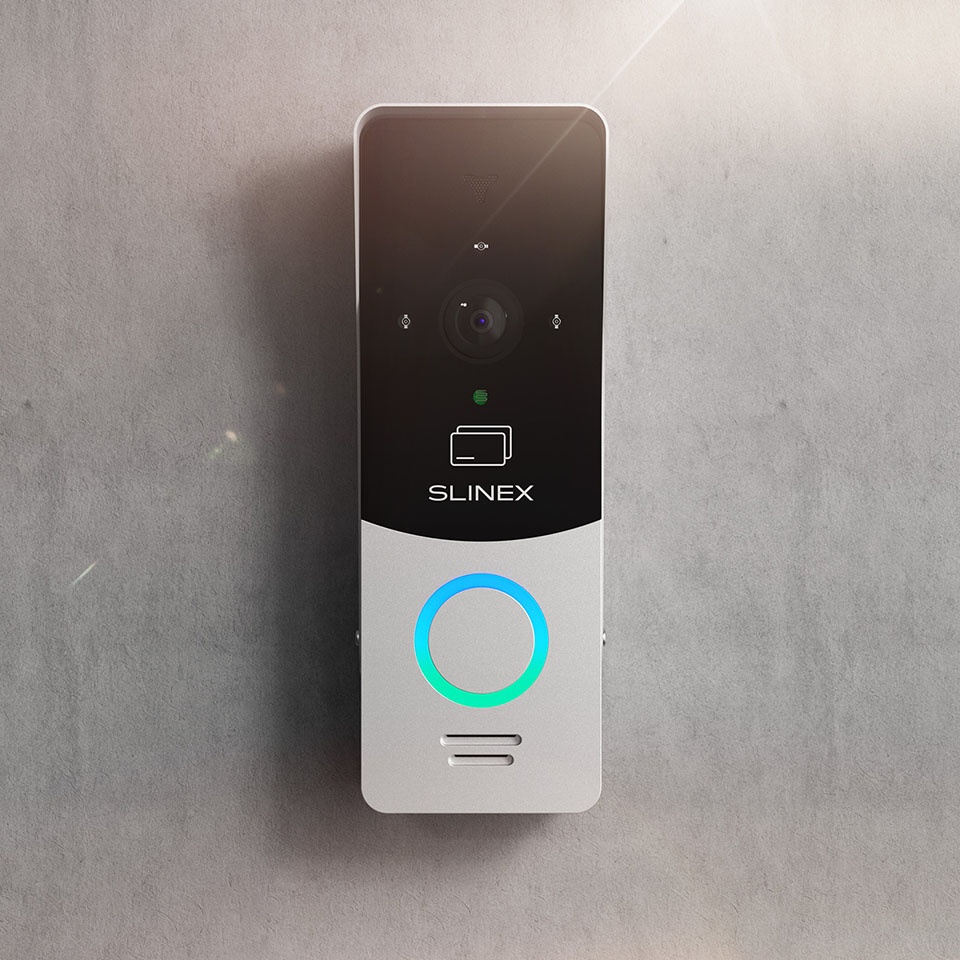

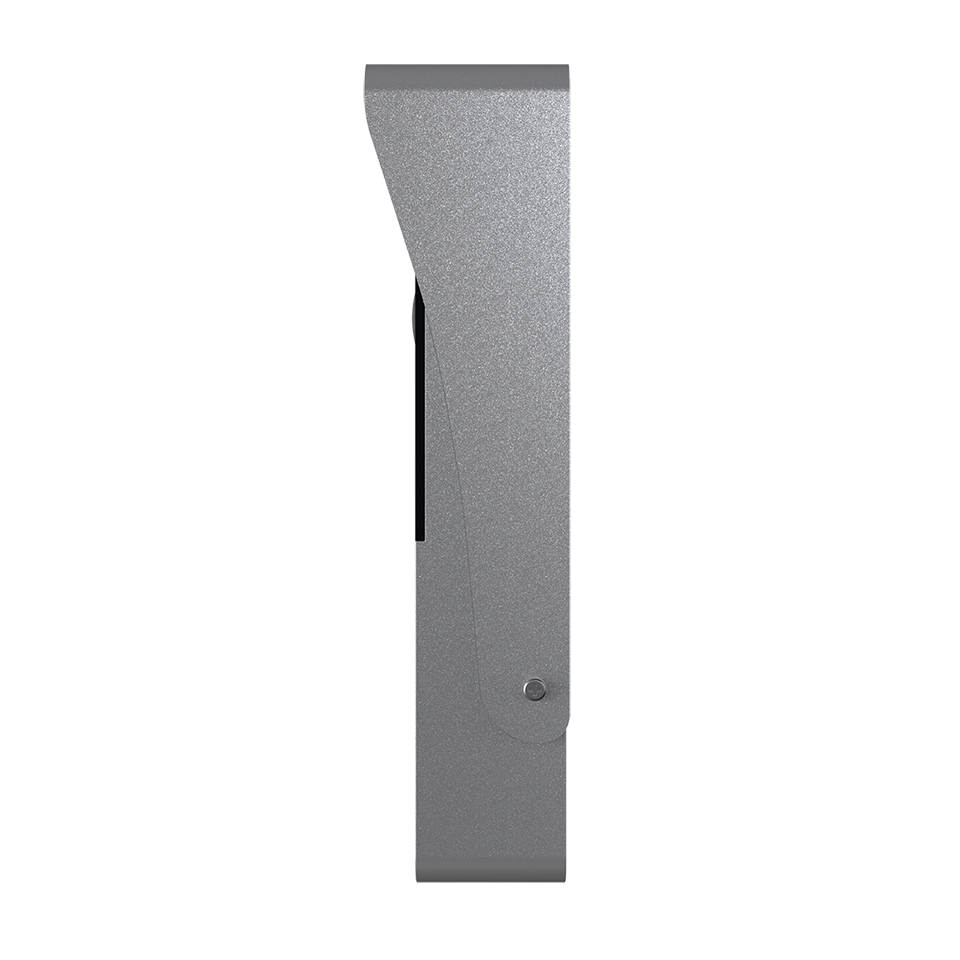

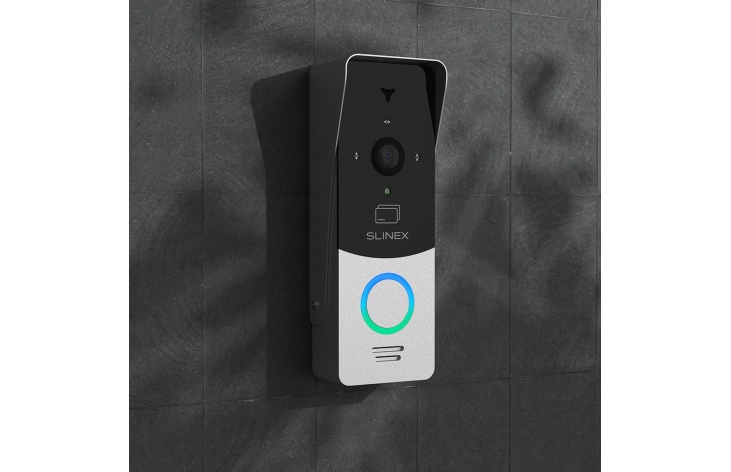

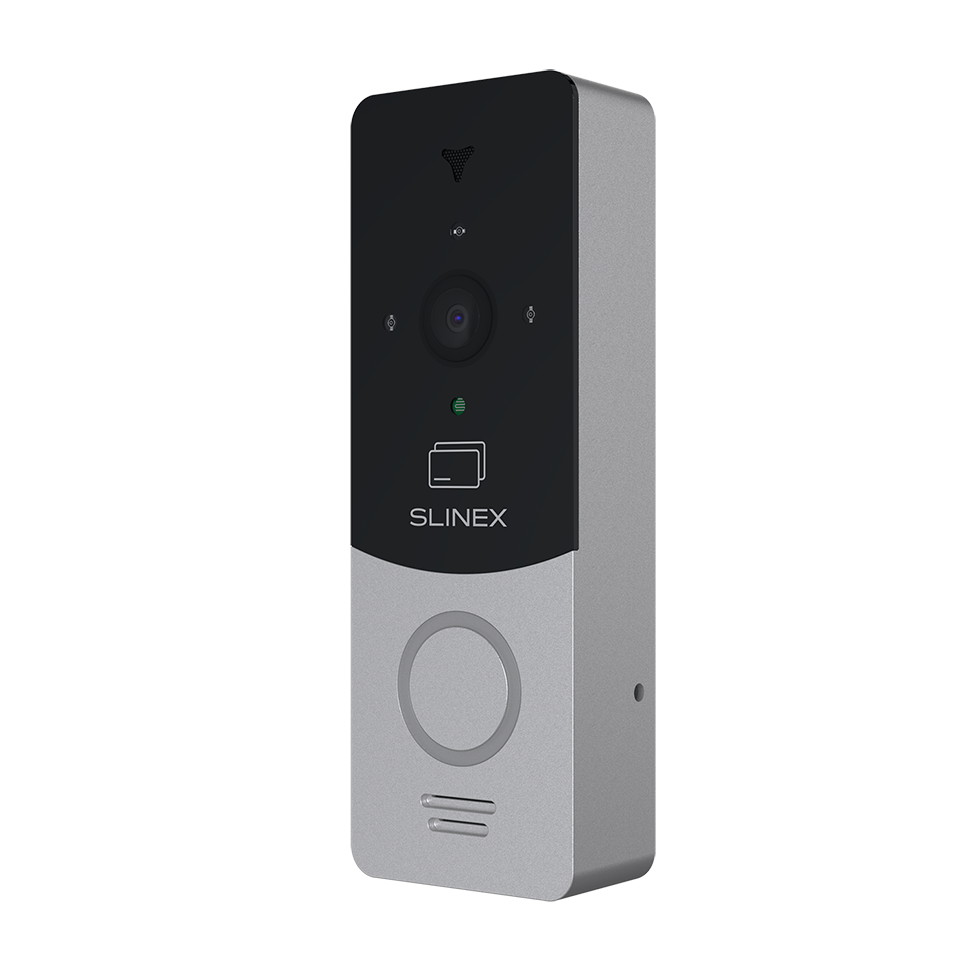

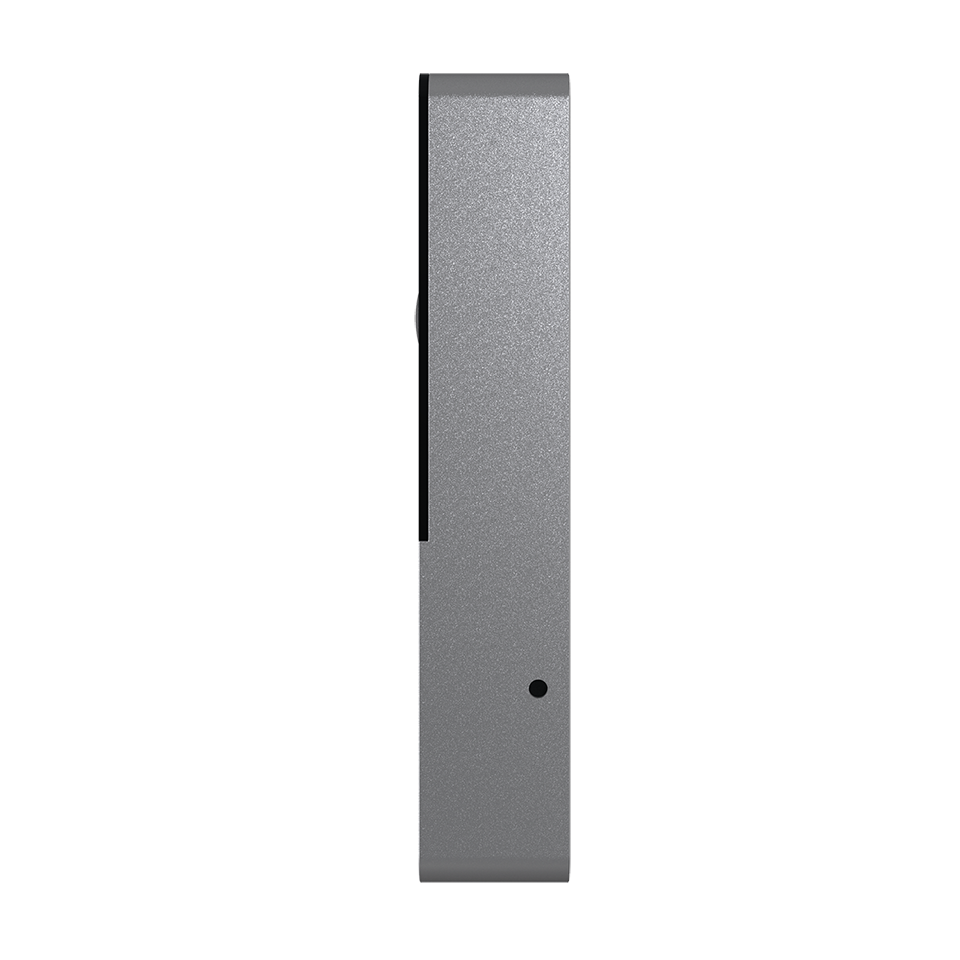

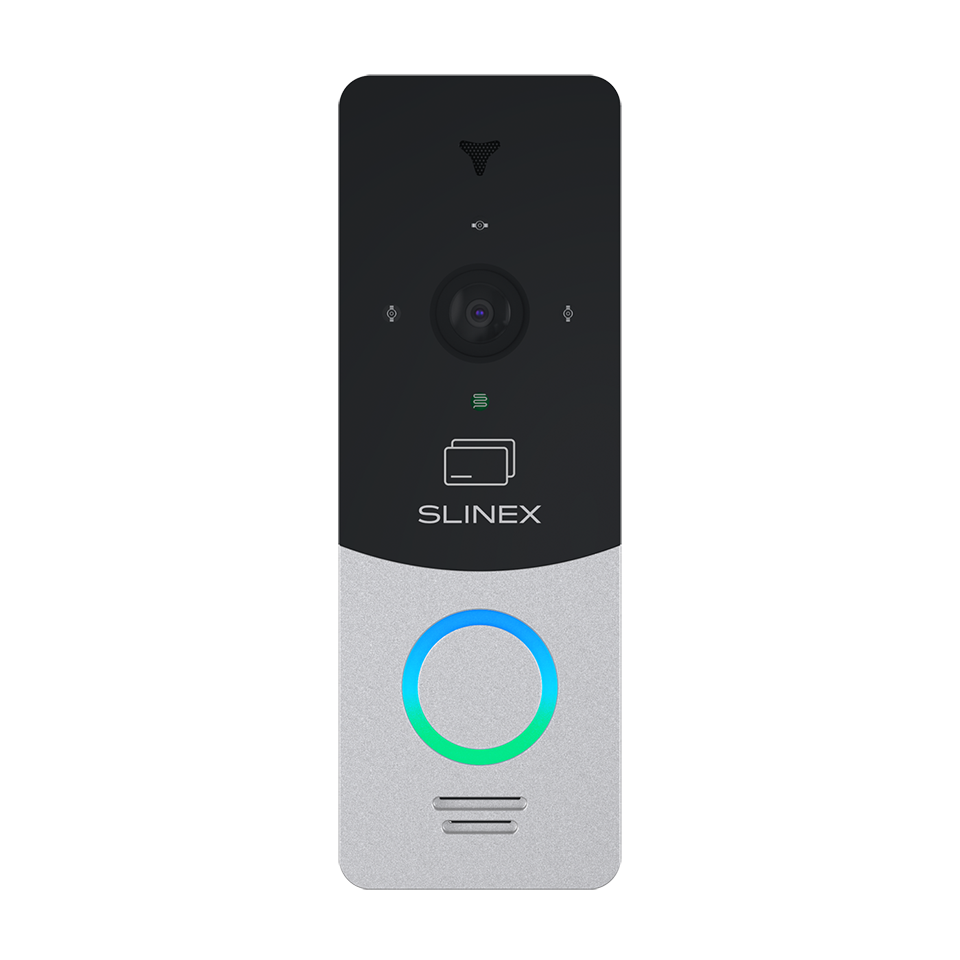

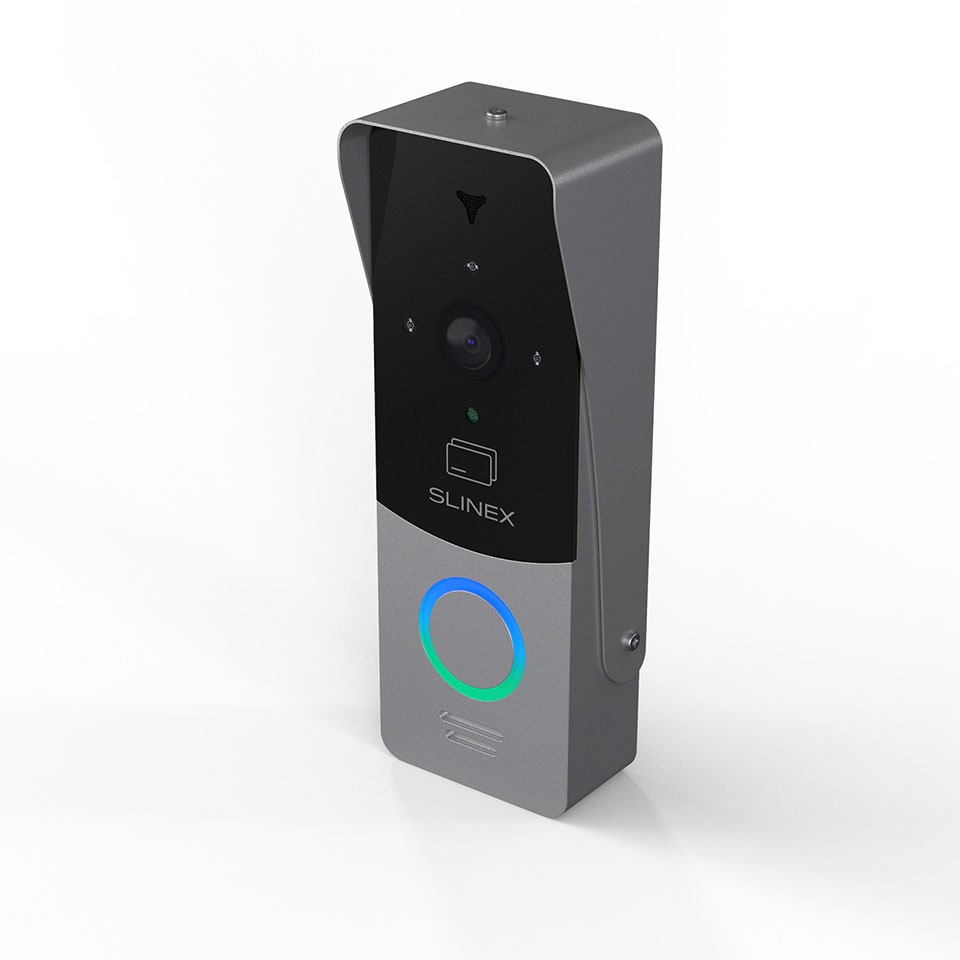

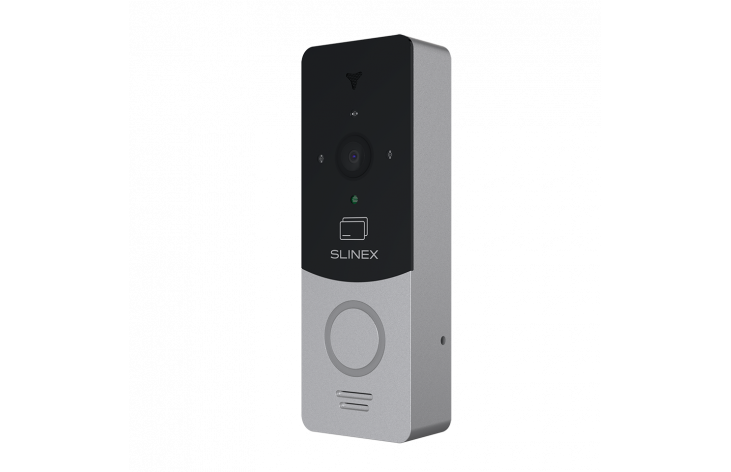

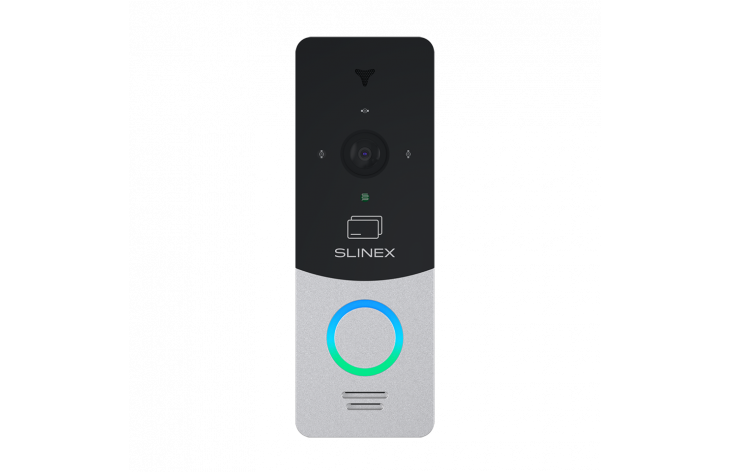

Slinex ML-20CRHD
Individual outdoor panel with wide view angle, AHD/CVBS support and wireless ID card reader
- Backlight of the button
- Resolution 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS)
- EM-Marin card reader
Colors
Slinex ML-20CRHD
Individual outdoor panel with wide view angle, AHD/CVBS support and wireless ID card reader
- Backlight of the button
- Resolution 2 Mp (AHD) / 1 Mp (AHD) / 960 TVL (CVBS)
- EM-Marin card reader
Colors
Description
Description

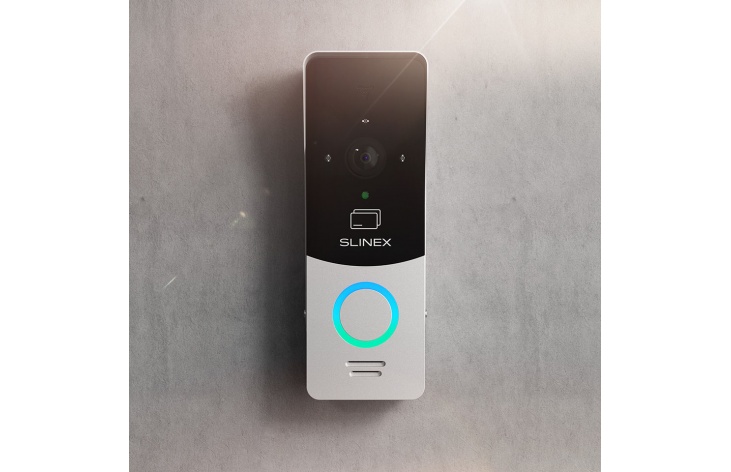

Experience the benefits of the ML-20 range of outdoor panels with the ML-20CRHD, a unique device that combines refined style with advanced features. With a high-quality 2-megapixel camera, an EM-Marin proximity card reader, and compatibility with any analog monitor, the ML-20CRHD is the perfect solution for granting access to your premises.
Proximity card reader
The ML-20CRHD's EM-Marin proximity card reader can store up to 248 unique identifiers in its secure memory, allowing you to easily manage access to your premises. The panel also features a Wiegand-26 output, making it easy to connect to a third-party ACS system.
Camera

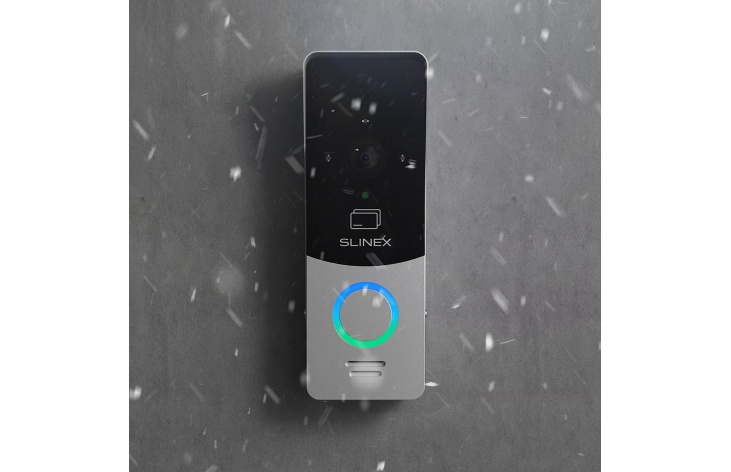

With a 115° viewing angle, the ML-20CRHD's 2-megapixel AHD camera provides Full HD pictures and videos with incredible detail. Even in low-light conditions, the IR illumination with a mechanical filter ensures that you can always see who's ringing at the door.
Features

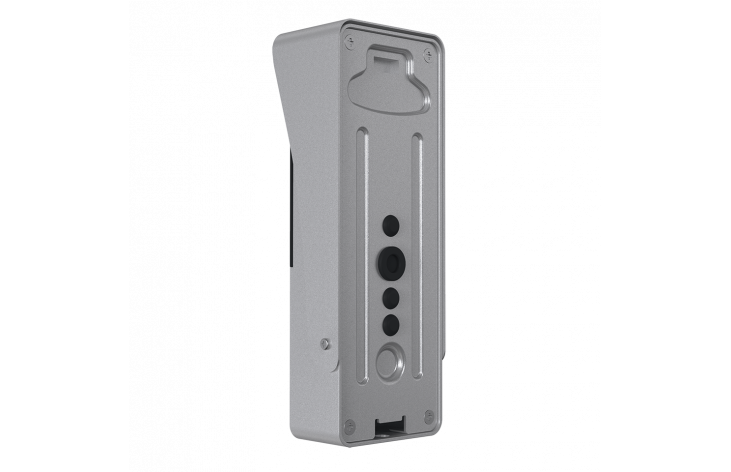

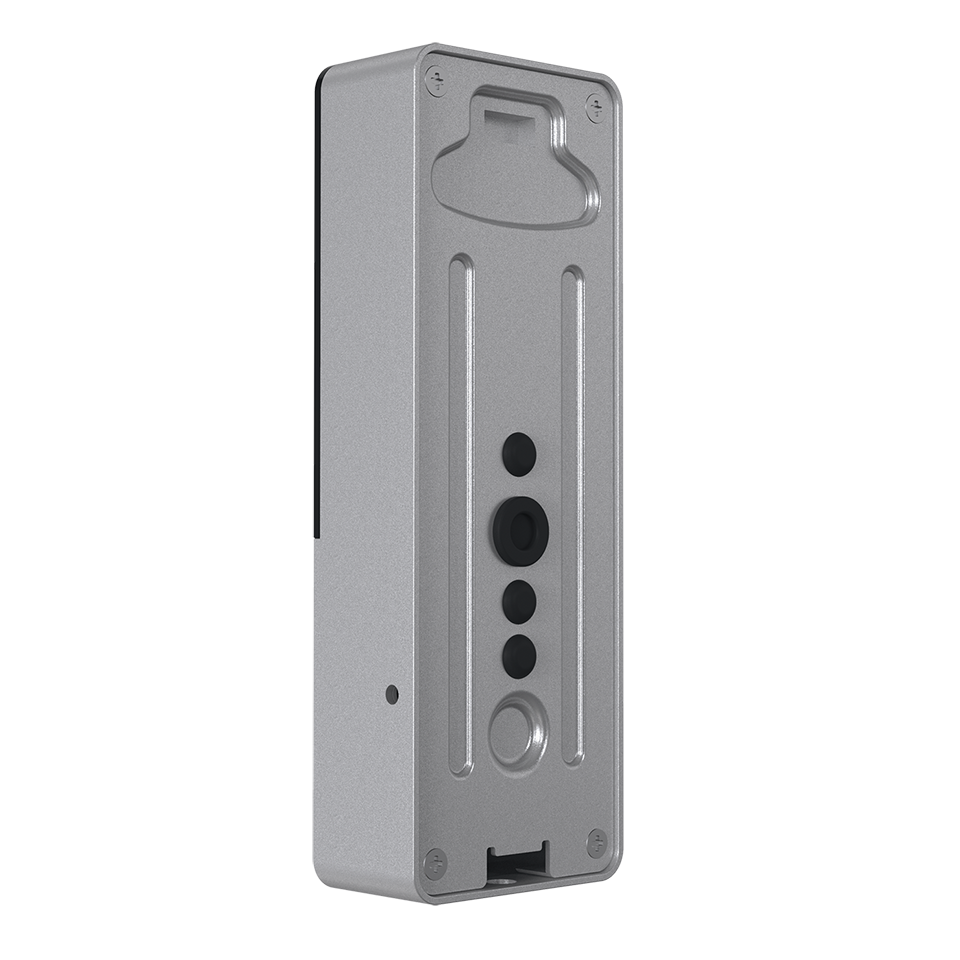

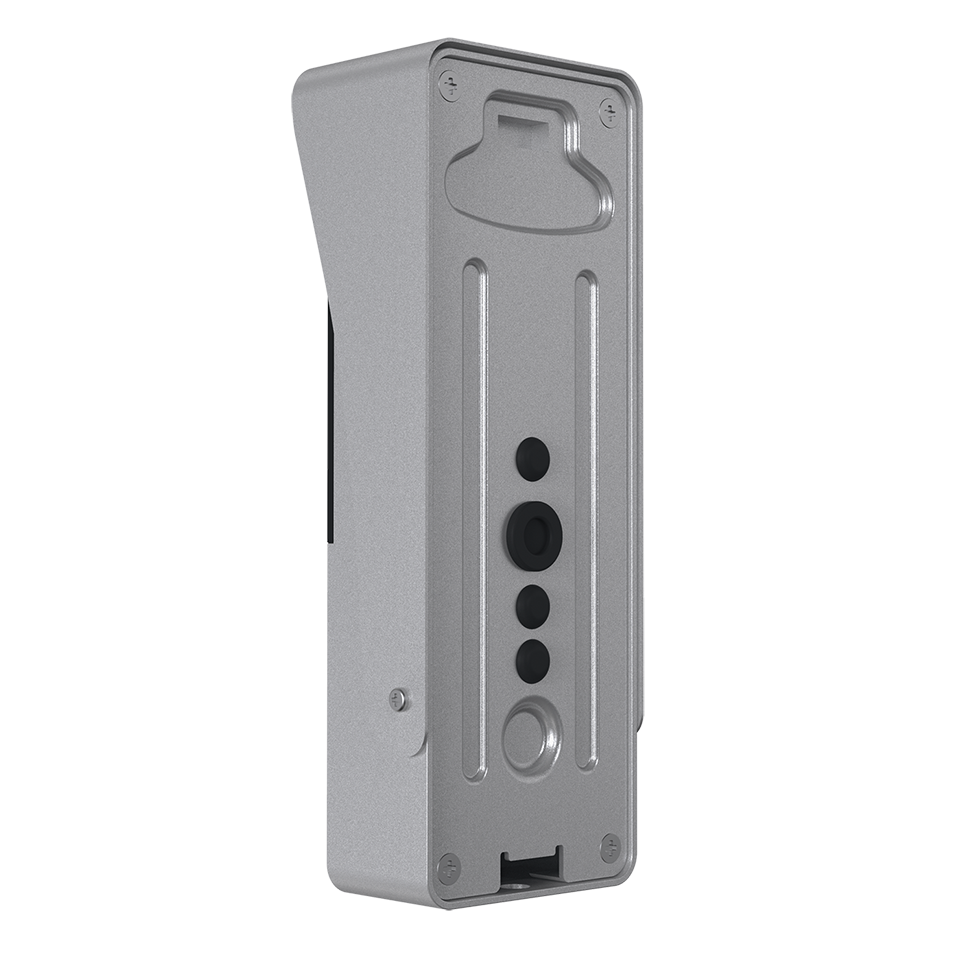

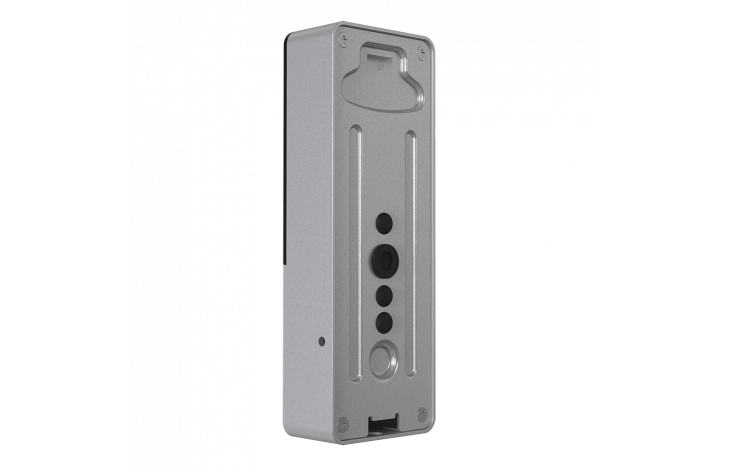

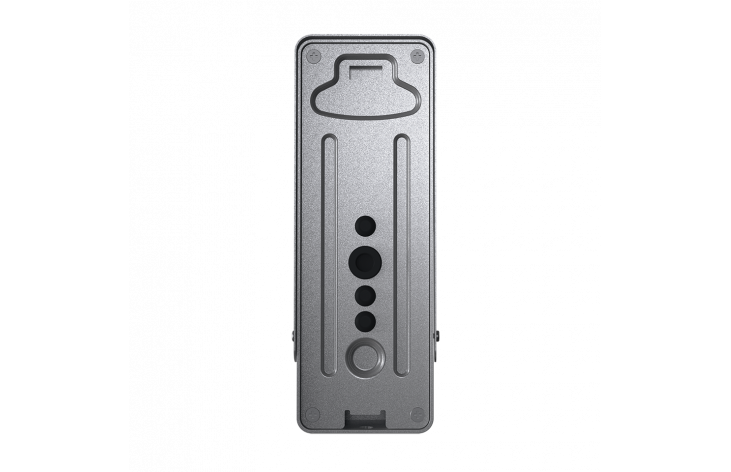

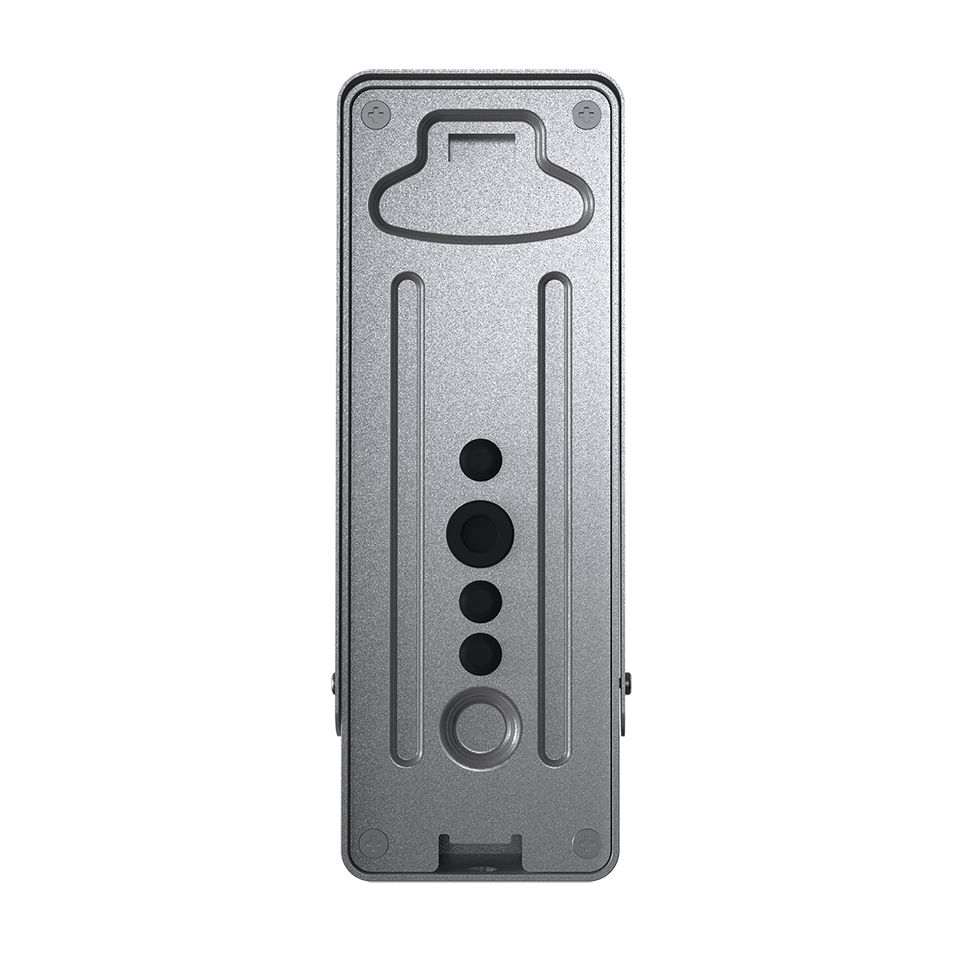

If your video door phone doesn't support the AHD standard for video recording, simply switch the ML-20CRHD to CVBS mode using the button on the back of the device. With compatibility with almost any analog video intercom, the ML-20CRHD is a versatile solution for any premises.
Slinex ML-20CRHD – provide access to the premises for anyone you want.
Horizontal viewing angle
115°
Camera resolution
• 1920×1080 (AHD-H)
• 1280×720 (AHD-M)
• 960 TVL (CVBS)
Dimensions
45×130×24 mm
Operating temperature
-40 – +50 °С
Characteristics
- Unique features
- • Camera operation modes switcher (AHD-H, AHD-M, CVBS)
• Mechanical IR-cut filter
• Sensor type call button
• Video format switch button
• Access control – card reader EM-Marin - Type of sensor
- 1/4" CMOS
- Night backlight
- IR LED, up to 1.5 m
- Minimal illumination
- 0,01 Lux
- Body structure
- Metal alloy
