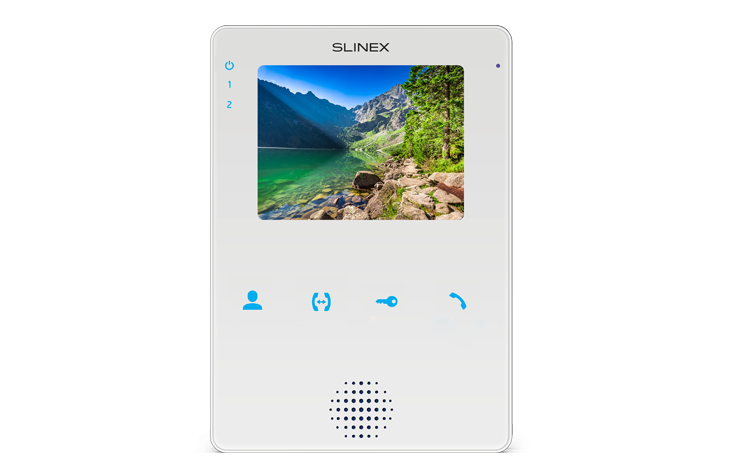

Slinex MS-04 is a miniature color video intercom. But do not let its size and budget price to mislead you; this device has a number of interesting features and technical capabilities that will impress you. More information about its technical and functional points is provided below.
Where to use
The model will perfectly fit into the interior of your apartment or office because it will not stand out too much due to small size and classic colors (white and black). You may also use this intercom as one of the links in your intercom chain, for example, in a private house.
The main features of the model
Firstly, you need to know that this intercom has a built-in power supply, which eliminates the headache caused by the need to hide the external power supply, especially if your repair has already finished and you do not plan to resume it. The MS-04 can be powered with standard power from the socket 100-240 V or +12 V.
Secondly, the intercom offers custom settings. You can select and set one of the provided 16 melodies as a ring call. You can adjust call duration and, of course, the volume. You can set up the intercom for varied volume, from nearly silent to very loud, depending on the time of day. It is possible to set 3 temporary volume modes.
The device is controlled by the touch buttons located below the display.
Appearance and display
MS-04 design is a calm classic. It has usual forms and standard colors: white and black. The dimensions of the device are 119×168×22 mm. The main control buttons are sensory.
The intercom is designed for the wall-mounted type of installation. Due to the built-in power supply unit, you will not have any problems with the installation.
MS-04 has the color screen with a diagonal of 4.3 inches and the resolution of 320x240 pixels.
Device compatibility with additional components
MS-04, like many other Slinex video intercoms, is fully compatible with almost any analogue outdoor panel that supports PAL/NTSC standards, as well as with all analog CCTV surveillance cameras regardless of the manufacturer.
You can connect 2 outdoor panels and 1 CCTV camera to MS-04.
The video intercom – 1 pc.
Wall mount bracket – 1 pc.
Wires for connection – 4 pcs.
Set of mounting screws and dowels for installation – 1 set.
User's manual –1 pc.
Brief guide for intercom installation
1. Place the bracket in the location of the intended installation;
2. Drill the required number of holes in the wall (4);
3. Place the dowels from the set in the holes;
4. Fix the bracket with screws;
5. After connecting the required communication wires, fix the intercom on the bracket.
Slinex MS-04 is a compact video intercom that can be easily installed in any facility to ensure serenity as well as in office buildings for access control.
4” color TFT screen 4:3
• Compact size
• Built-in power supply
