Description

First impression
All wishes voiced by the users were taken into account during the design and development of new the intercom, Slinex SL-07IP. New useful functions were added as well.

The body is made of the flawlessly smooth aluminum and glass offered in several color solutions.  The most demanding users will find they are they looking for. The device has many positive aspects that make the user experience with it as pleasant and simple as possible.

The model has a 7-inch screen for clear picture of what is happening on the street or indoors. SL-07IP is very convenient to use because it can be connected to the Internet via Wi-Fi or Ethernet and control the device through the application on your mobile phone, tablet, or a PC browser.

The main features of the model
In addition to the standard connection via Ethernet, with SL-07IP you can do it via Wi-Fi. You can control the intercom while you are not at home, receive incoming calls, and open doors using your personal tablet or smartphone.  All you need to do is to install the Slinex application that requires an Internet connection. You can also set up sending PUSH notifications or e-mails after motion detection and/or incoming calls. To configure the intercom, you need to install the application and add your device into the system in any of the three ways, namely:
• scan the QR code located on the back of the intercom;
• find your intercom with the help of automatic search of devices in the local network;
• enter the device UID, login, and password manually.

The system allows connecting two outdoor panels or two analog video cameras simultaneously. Both panels are powered by the intercom, but cameras require a separate power supply. The SL-07IP is configured to automatically record all incoming calls. Thus, you will always be aware of who came to facility while you were away. You can view any video at any time in the archive using a PC/mobile/tablet. You can choose your own melody for each outdoor panel out of the 16 provided.

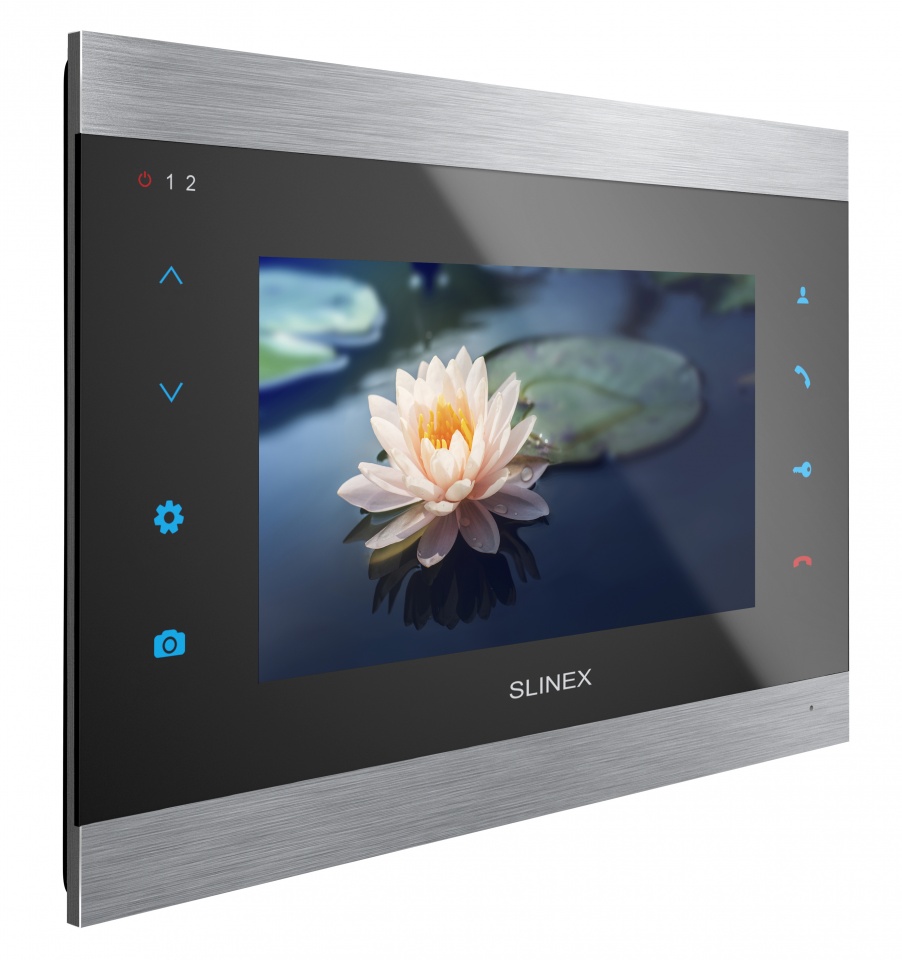

Appearance and display
The video intercom SL-07IP, as a bright representative of the SL series, was developed with a peculiar attention to details and design. Its elegant body is made of polished aluminum and glass. No protruding buttons. All control elements are sensory. The blue backlight adds certain elegance to the intercom.

SL-07IP is designed for a wall-mount type of installation, while the integrated power supply will make it easy to install the device without any additional manipulations.

The color 7 "display has the excellent color rendering and an intuitive menu.

Device compatibility with additional components
The video intercom SL-07IP is fully compatible with almost any analogue outdoor panel supporting PAL/NTSC standards as well as with all analog CCTV surveillance cameras regardless of the manufacturer.

Delivery set
The video intercom – 1 pc.
Wall mount bracket – 1 pc.
Wires for connection – 5 pcs.
Set of mounting screws and dowels for installation – 1 set.
User's manual – 1 pc.

Brief guide for intercom installation
1. Place the bracket in the location of the intended installation;
2. Drill the required number of holes in the wall (4);
3. Place the dowels from the set in the holes;
4. Fix the bracket with screws;
5. After connecting the required communication wires, fix the intercom on the bracket.

Slinex SL-07IP is one of the best models in Slinex product line. The intercom combines a wide range of functions and a sophisticated style. It is safe to say that the SL-07IP is the ideal solution that will not only ensure the safety of your home but also become an excellent harmonious addition to your interior.

Full description Hide
DISPLAY

7” color TFT screen 16:9

SIZE

230×165×22 mm

ADDITIONALLY

16 polyphonic ringtones

UNIQUE FEATURES

• Receiving a call on application on smartphone
• Wi-Fi
• Ethernet network connection
• Remote viewing of panels and stored archive

Characteristics

Screen resolution
800x480
Outdoor panels quantity
2
Additional video cameras quantity
2
Memory
MicroSD card, up to 32GB
Power consumption
Up to 10 W
