Description

First impression
The Slinex SL-07MHD is an advanced version of the SL-07 video intercom with additional features, such as an external memory card slot. The SL design line is distinguished by its unique and elegant appearance, featuring a polished aluminum and glossy glass finish.

The intercom offers a wide range of functionalities, including motion detection software, a "Do not disturb" mode, clock display in standby mode, the option to disable button illumination, and mute confirmation sounds.

Where to use
This video intercom is perfect for a wide range of settings, including apartments, private homes, and offices of reputable companies that care about every detail. With the SL-07MHD, you can build a real security and intercom system.



The main features of the model
One of the standout features of the SL-07MHD model is its motion detection software, which initiates recording not only after pressing the call button or manually, but also when motion is detected. This functionality is particularly useful as it helps prevent the device's memory from getting filled up with unnecessary footage, and is especially handy in the event of an unexpected visitor.



However, the SL-07MHD's unique capabilities don't stop there. For instance, it comes equipped with an external memory slot that can support microSD cards up to 64GB, in addition to the internal memory that can store up to 100 frames. This expands the device's functionality and provides ample space for storing photos and videos of visitors.



The SL-07MHD is compatible with a variety of doorbells and cameras, including PAL / NTSC / AHD, TVI, and CVI (720p,1080p) models.



To enhance user convenience, the OSD menu allows for customization of numerous settings, such as the "Do not disturb" mode, enabling/disabling the clock display in standby mode, backlighting of intercom buttons, and muting the confirmation sound when buttons are pressed, among others.



Users can also set their favorite mp3 ringtone as their signal and select from three sound modes for different times of the day, such as a quieter mode for the morning, a louder one for the evening, and almost noiseless for nighttime. Display settings, including brightness, contrast, and color saturation, can be adjusted for each connected camera. Door opening time can be customized separately for each outdoor panel as well.


Appearance and display

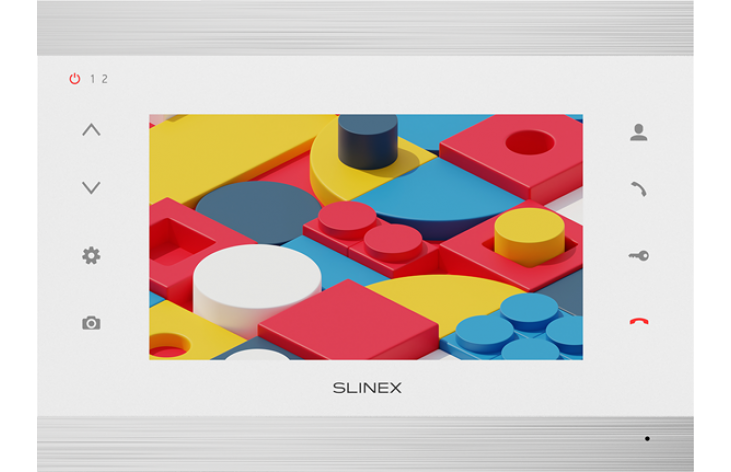

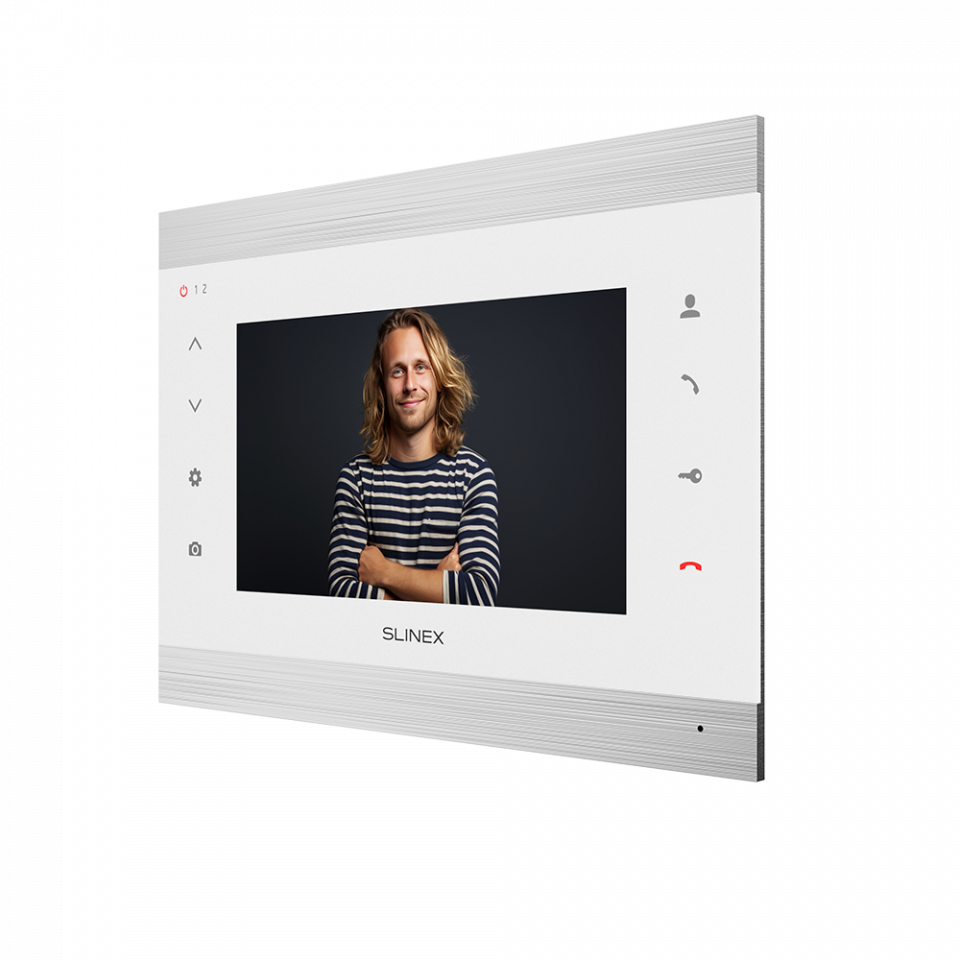

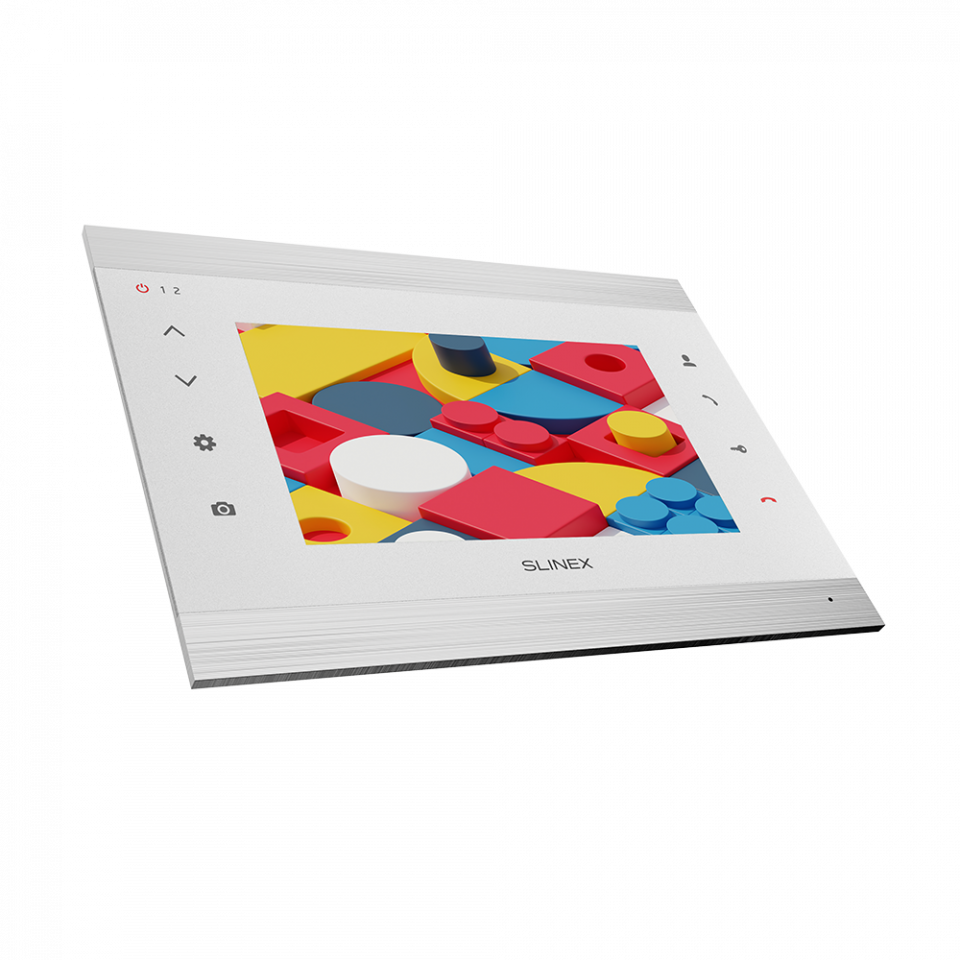

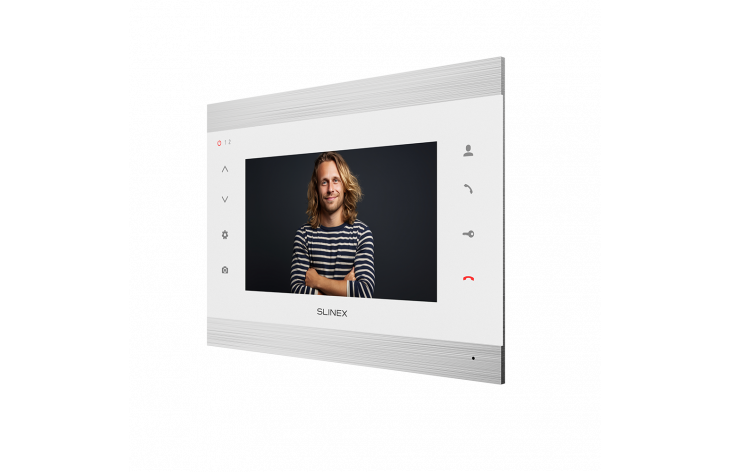

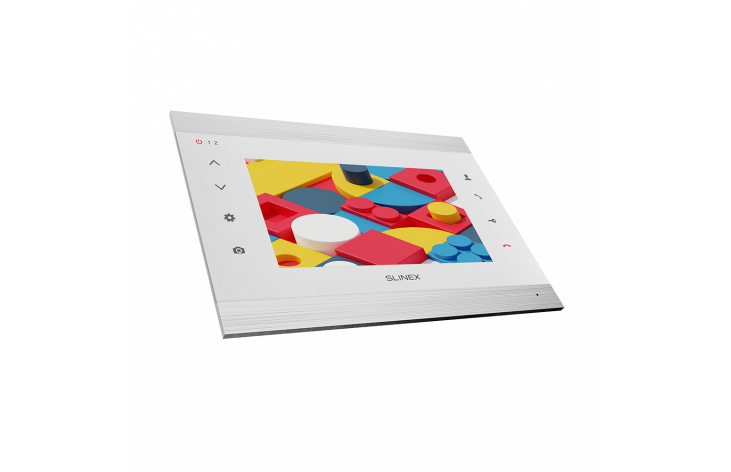

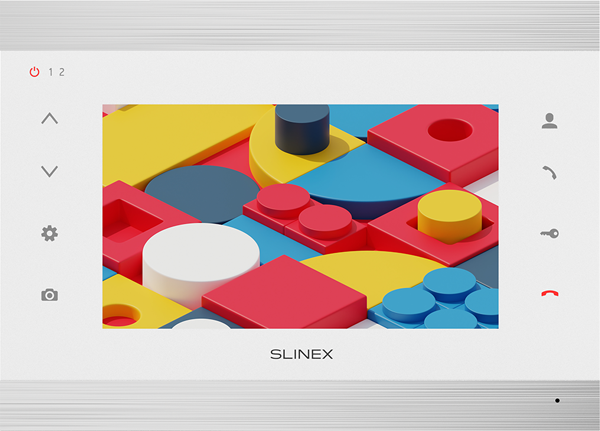

The SL-07MHD's appearance is sure to impress with its sleek aluminum and glass body. It has a 7-inch IPS screen with excellent color rendering and a resolution of 1024×600. Despite its small thickness, the device has a built-in power supply and is controlled by touch buttons located on the sides of the screen.

Overall, the Slinex SL-07MHD video intercom is an excellent choice for those who value both style and functionality in their security and intercom systems.

Full description Hide
DISPLAY

7”, IPS screen 16:9

Dimensions

230×165×22 mm

UNIQUE FEATURES

• PAL / NTSC / AHD, TVI, CVI (720p, 1080p) support
• Software motion detection
• “Do not disturb” mode
• Individual melody of call for each panel
• Adjustable time of opening the door for each panel

ADDITIONALLY

• MP3 melody as a ring tone
• 3 sound modes for different times of day
• Adjustable brightness, contrast, and saturation for each channel separately

Characteristics

Screen resolution
1024×600
Outdoor panels quantity
2
Additional video cameras quantity
2
Memory
External memory – microSD card up to 64GB
Power consumption
Up to 7W
All characteristics
