Description

First impression
Video intercom Slinex SL-10IP has a unique balance of exclusive design, true style, and powerful functionality. The body of the device is made of a high-quality polished aluminum and glass. The design has a rare elegance and the ability not only to serve you for many years but also to perfectly harmonize with the interior.

Large display with excellent color reproduction, the possibility to connect to Ethernet, built-in Wi-Fi, software for motion detection, support for SD memory cards up to 64 GB, quadrator that allows displaying four images simultaneously, and control through a mobile application installed on your phone – these are not all the advantages offered by this model of video intercom.

Where to use
Video intercom SL-10IP is designed to provide complete security and control over what is happening in your apartment, home, or office. The presence of the quadrator makes the model particularly useful when used in working premises.

The main features of the model
The main distinguishing feature of the SL-10IP model is the built-in quadrator that allows displaying four images simultaneously. You can select one of them for a full-screen preview. You can connect two outdoor panels and two additional video cameras at once to this intercom to ensure the maximum coverage of the territory.

The video recording starts manually at the press of a button when somebody makes a call from the outdoor panel. It is possible to set up automatic recording according to the customizable schedule. In addition, the model has software for motion detection with the ability to select and configure especially important zones.

You can talk to your visitors and open the doors without even being at home.  The function of a remote opening of the connected electric locks is very useful. Being in any place that has the Internet connection and using the Slinex application installed on your mobile phone/tablet or via a web browser, you can connect to your cameras, view images, and control the basic functions of the intercom. You can set up sending PUSH notifications or e-mails in case of motion detection and/or incoming calls. To configure the intercom, you need to install the application and add your device in any of the three ways, namely:
• scan the QR code located on the back of the intercom;
• find your intercom with the help of automatic search of devices in the local network;
• enter the device UID, login, and password manually

You can also save the records you need on the SD memory card up to 64 GB.

Appearance and display

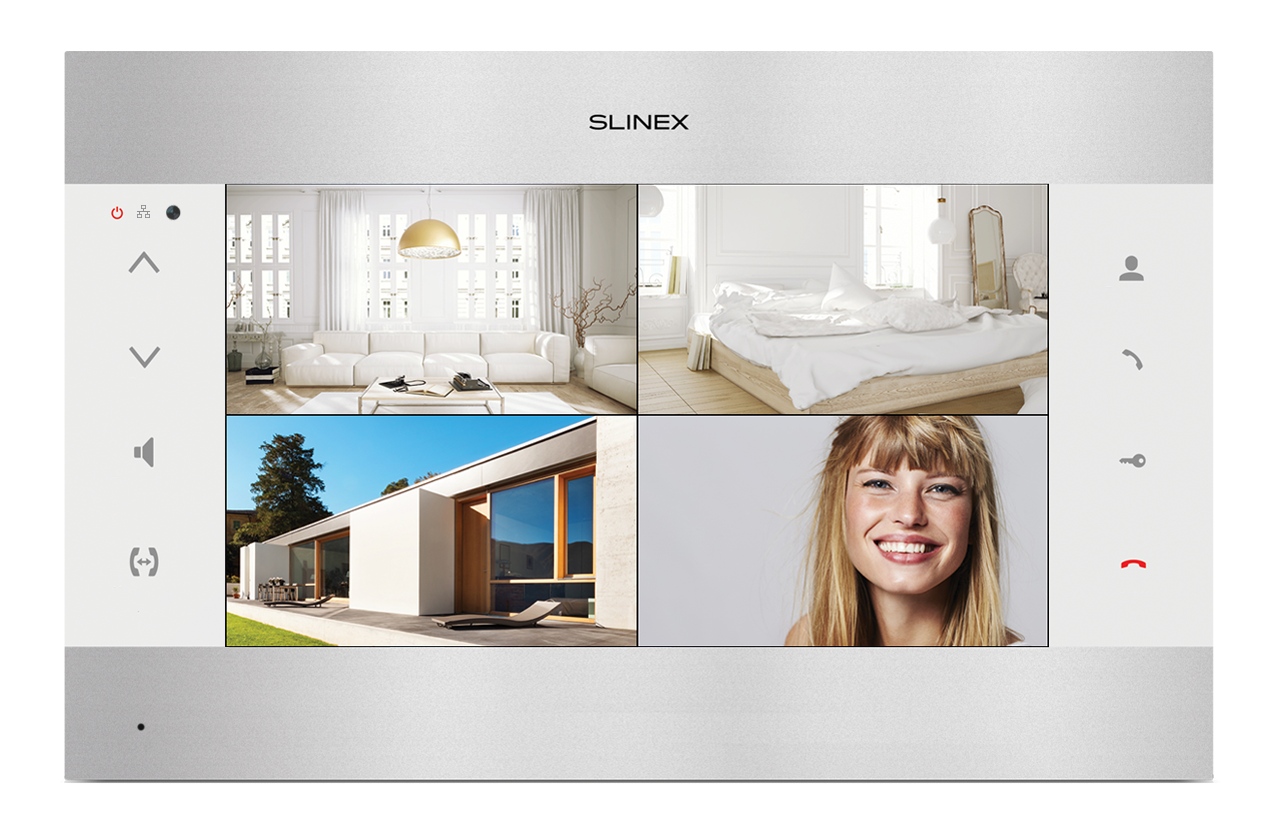

This video intercom has a 10-inch screen with an improved resolution of 1024x600 and excellent color reproduction. Like all devices in the SL series, the SL-10IP is made of high-quality polished aluminum that has a very modern and expensive look.

Inputs and outputs
The video intercom has the full touch control. You can also manage all the settings with a special console or USB mouse included in the kit.

The rear panel of the device has inputs and outputs for:
• connection to the network;
• 2 connectors for connecting the cables of the outdoor panels;
• 2 connectors for connecting video camera cables;
• 12V power supply;
• Intercom;

The side panel of the video intercom has:
• connector for USB mouse;
• memory card slot.

Device compatibility with additional components
SL-10IP is fully compatible with almost any analogue outdoor panel supporting PAL/NTSC standards as well as with all analog CCTV surveillance cameras regardless of the manufacturer.

Delivery set
The video intercom – 1 pc.
Wires for connection – 7 pcs.
Wall mount bracket – 1 pc.
Set of mounting screws and dowels for installation – 1 set.
Power supply unit – 1 pc.
USB mouse – 1 pc.
User's manual – 1 pc.

Brief guide for intercom installation
1. Place the bracket in the location of the intended installation;
2. Drill the required number of holes in the wall (4);
3. Place the dowels from the set in the holes;
4. Fix the bracket with screws;
5. After connecting the required communication wires, fix the intercom on the bracket.

Video intercom Slinex SL-10IP is a model for users who choose a functional, modern, and stylish device that meets the most important requirements. This intercom allows you to maintain a complete security of your home or business, and will perfectly harmonize with your interior.

Full description Hide
DISPLAY

10” color TFT screen 16:9

SIZE

305×190×23 mm

ADDITIONALLY

16 polyphonic ringtones

UNIQUE FEATURES

Receiving an incoming call from the calling panel to your device, connection to the Ethernet network, quadrator, the DVR function, integrated Wi-Fi.

Characteristics

Screen resolution
1024×600
Outdoor panels quantity
2
Additional video cameras quantity
2
Memory
SD card, up to 64 GB
Power consumption
Up to 12 W
